Automatic pallet labeling system

scorpion

Automatic pallet labeling system with an anthropomorphic robot.

Compact design, multi-sided application, real-time barcode printing and verification, with 99% uptime and operational autonomy guaranteed by a dual printer with automatic roll change.

DISCOVER MORE

Autonomy

Dual printer with automatic roll change: production never stops. Roll change in 5 minutes.

High performance

Production capacity up to 330 labels/hour. System availability: 99%.

Safety

Printing system positioned outside the perimeter guards for maximum safety during roll change and maintenance operations.

Accessibility

Ergonomic system with independent control panel for easy installation. High accessibility for cleaning and roll change operations.

Robotic labeling machine for pallets and stacked loads

What does SCORPION do

01

It prints the label

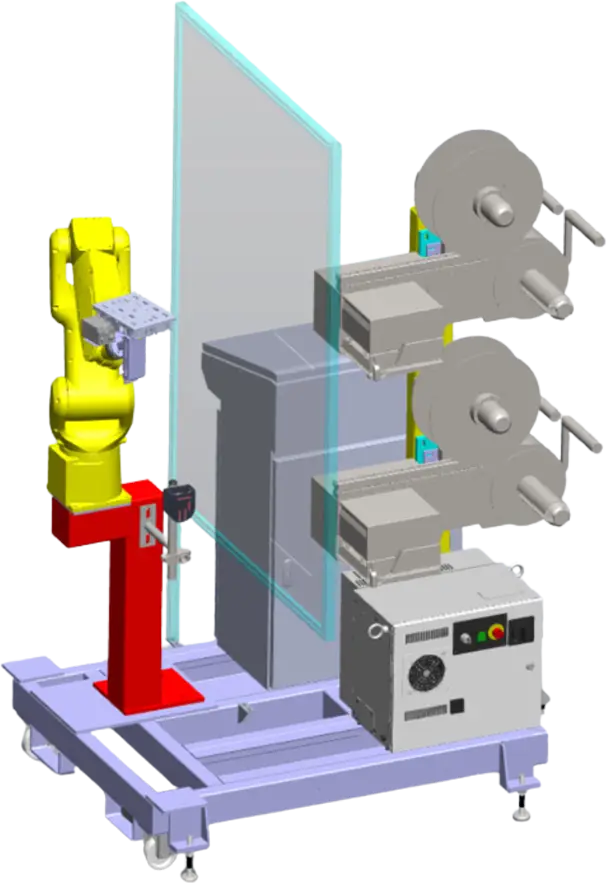

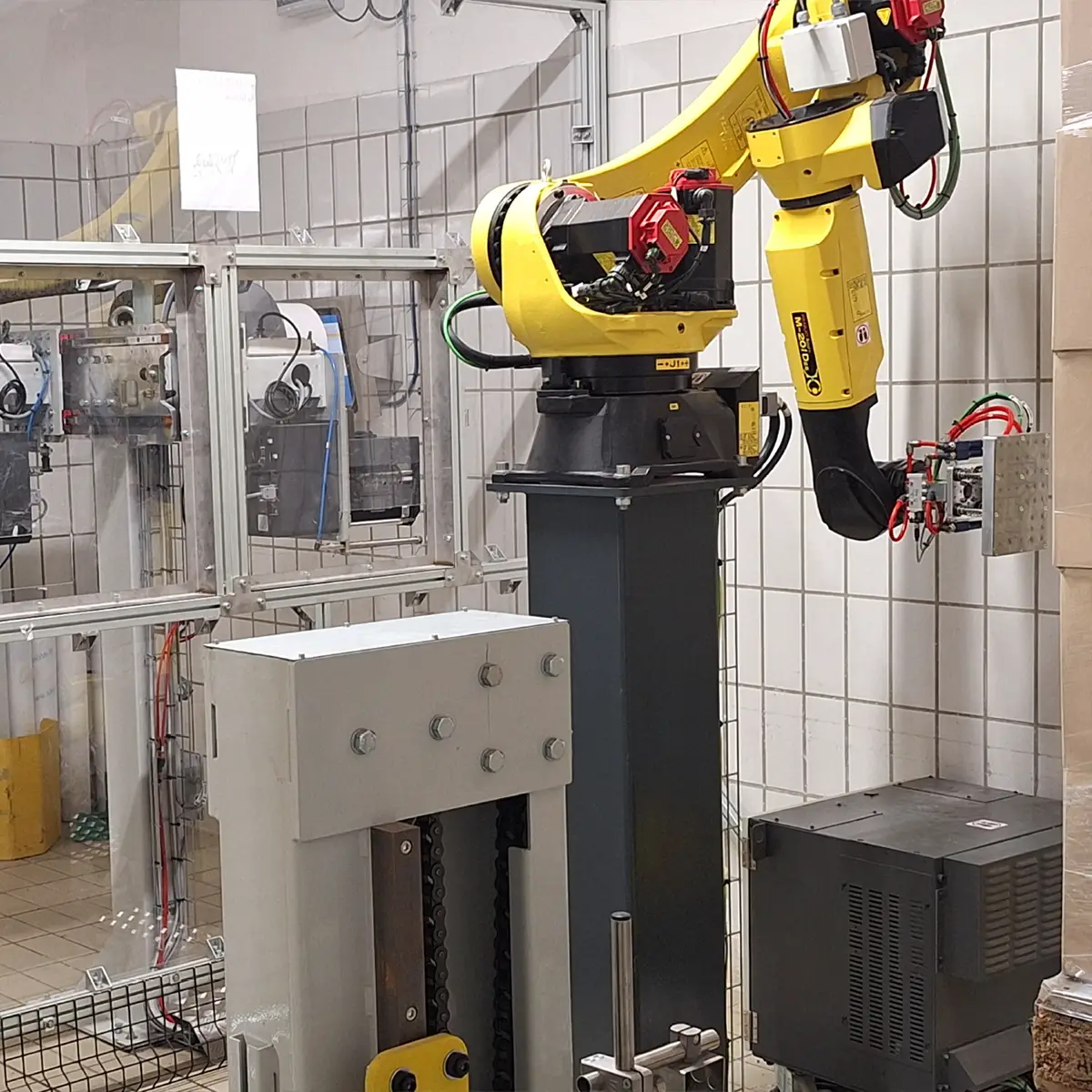

SCORPION is Ercopac’s robotic labeling machine that operates in the final stage of the end-of-line process, immediately after palletizing and wrapping: it prints the label in real time, verifies it via scanner, and applies it precisely to the pallet.

02

It maintains flexibility

Thanks to the anthropomorphic robot and compact design, the system maintains application flexibility and high production capacity, ensuring that every pallet is uniquely identified and compliant before entering the logistics process.

03

It prevents errors

Labeling is the final step before shipping and distribution: an error at this stage leads to disputes, returns, or goods being held up. SCORPION eliminates this variable with an automatic, objective, and consistent process, independent of the operator.

04

It adapts to different configurations

The system is compatible with half-pallets, Euro-pallets, and industrial pallets, and is suitable for various end-of-line configurations.

Standard labeling on 2 corners, up to 4 corners with a rotary table

In the standard configuration, SCORPION handles labeling on 2 corners of the pallet. With the optional rotary table, the system allows for labeling on 4 corners, expanding application possibilities without changing the line layout.

An optional feature for two-level labeling is also available for lines that handle stacked loads or require labels to be applied at different heights on the pallet.

Operational autonomy with dual printers

SCORPION ensures high operational autonomy thanks to the option of installing two printers with automatic roll change: when one printer runs out of roll, the other immediately takes over, eliminating production downtime. Roll changes take 5 minutes, without stopping the line.

SCORPION ensures high operational autonomy thanks to the option of installing two printers for automatic roll change.

Safety, Simplicity, and Accessibility

Safety

The printing system is positioned outside the perimeter guards: roll changes and maintenance are performed without entering the protected areas.

Simplicity

The independent control unit makes the system autonomous and easy to integrate into the existing end-of-line layout.

Accessibility

Designed to ensure high accessibility for all cleaning, roll change, and routine maintenance operations.

High-quality components

SCORPION incorporates components selected to ensure reliability and long-term performance:

Scanner

Manufacturer: Keyence
Model: SR-2000W

Barcode control and label application

Robot

Manufacturer: Fanuc
Model: M-20iD/25

Printer

Label Size: A5
Reel Diameter: 300 mm
Reel Change: 5 min
Ink Change: 5 min

OPTIONS

Available options

SCORPION can be configured with:

  • Rotary table for 4-corner labeling
  • Two-level labeling
  • Dual printer with automatic switching

When to choose SCORPION

When pallet traceability is critical for logistics

Ideal for companies that need to ensure accurate and compliant identification throughout the supply chain, with integration with ERP, MES, or WMS.

When you want to eliminate labeling errors

Perfect for replacing manual or semi-automatic processes prone to errors, misalignments, or omissions. Each label is verified before application via an integrated scanner.

When you handle multiple formats, customers, or destinations

Allows you to automatically adapt labels and data without stopping the line, even with high variability in batches, codes, and destinations.

Quando hai bisogno di controllo e verifica in tempo reale

Thanks to the integrated scanners, every label is validated before application, eliminating the risk of regulatory or logistical non-compliance.

When working on high-efficiency automated lines

It integrates seamlessly into the flow without slowdowns, maintaining continuity and synchronization with other end-of-line systems. Declared availability: 99%.

When you want to integrate data and production (Industry 4.0)

Connected to ERP/MES/WMS, it transforms labeling into a strategic data management hub, with complete traceability and real-time data updates.

Request the SCORPION technical data sheet

Fill out the form to receive the technical specifications for the SCORPION robotic labeling machine and evaluate the configuration best suited to your production line.
