Automatic pallet wrapping with anthropomorphic robot

Automatic pallet wrapping system featuring a 6-axis anthropomorphic robot for high performance: up to 130 pallets per hour on Euro pallets, automatic head change in 25 seconds—the fastest on the market—and a robot MTBF of 80,000 hours.

Reliability

Robot MTBF of 80,000 hours. Reduced mechanical maintenance and energy savings thanks to the use of the anthropomorphic robot.

High Performance

Production capacity of up to 130 pallets/hour on Euro pallets. Automatic head change in 25 seconds — the fastest available on the market.

Flexibility

Compact layout and small footprint: suitable for both new lines and existing facilities. Free three-dimensional movements thanks to the 6-axis robot.

Patented water-proof cycle

Superior pallet protection in a single wrapping cycle, without the need for a double cycle with an intermediate top-up.

High-Performance Wrapping System with Anthropomorphic Robot

What does SPIDER-R do

01 It wraps automatically

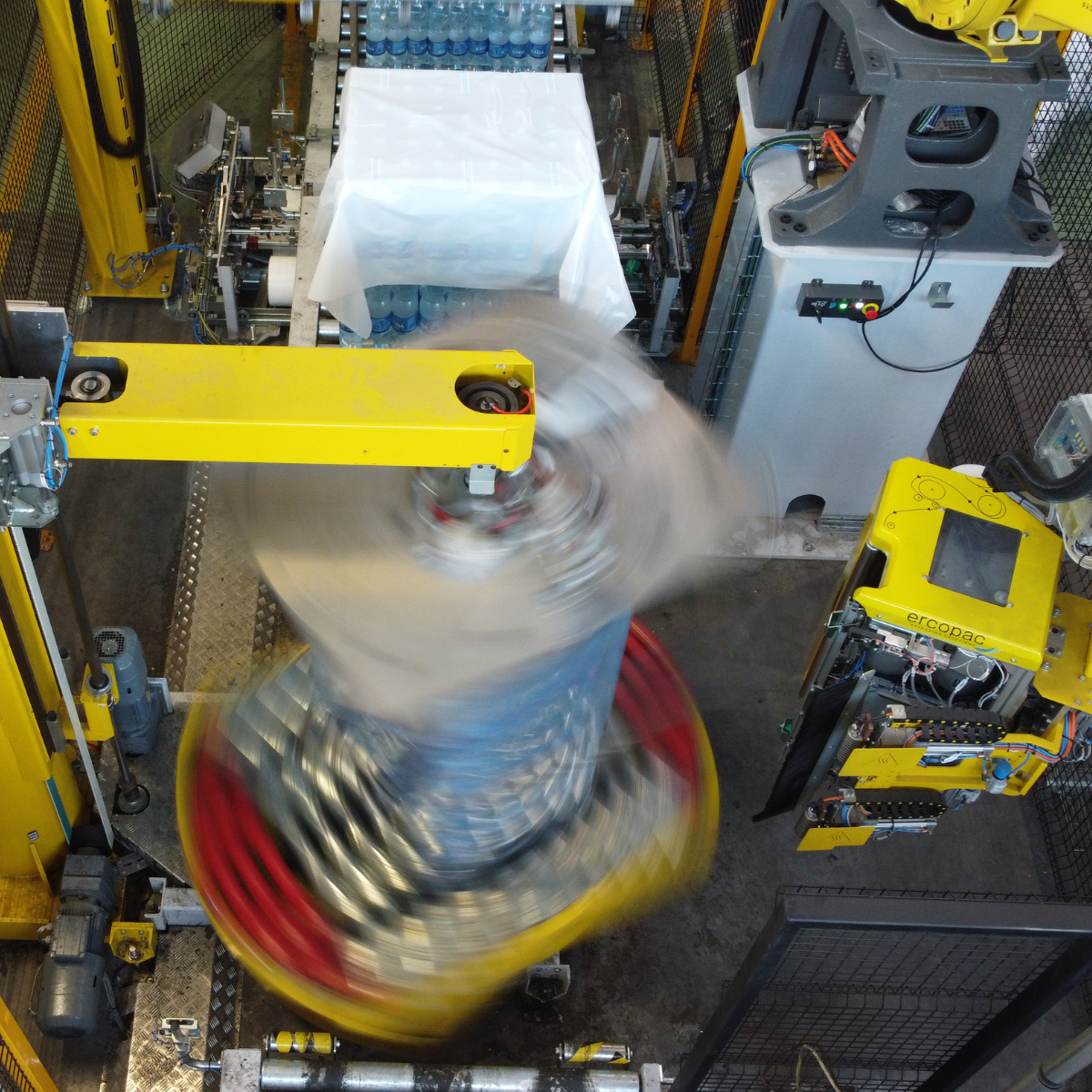

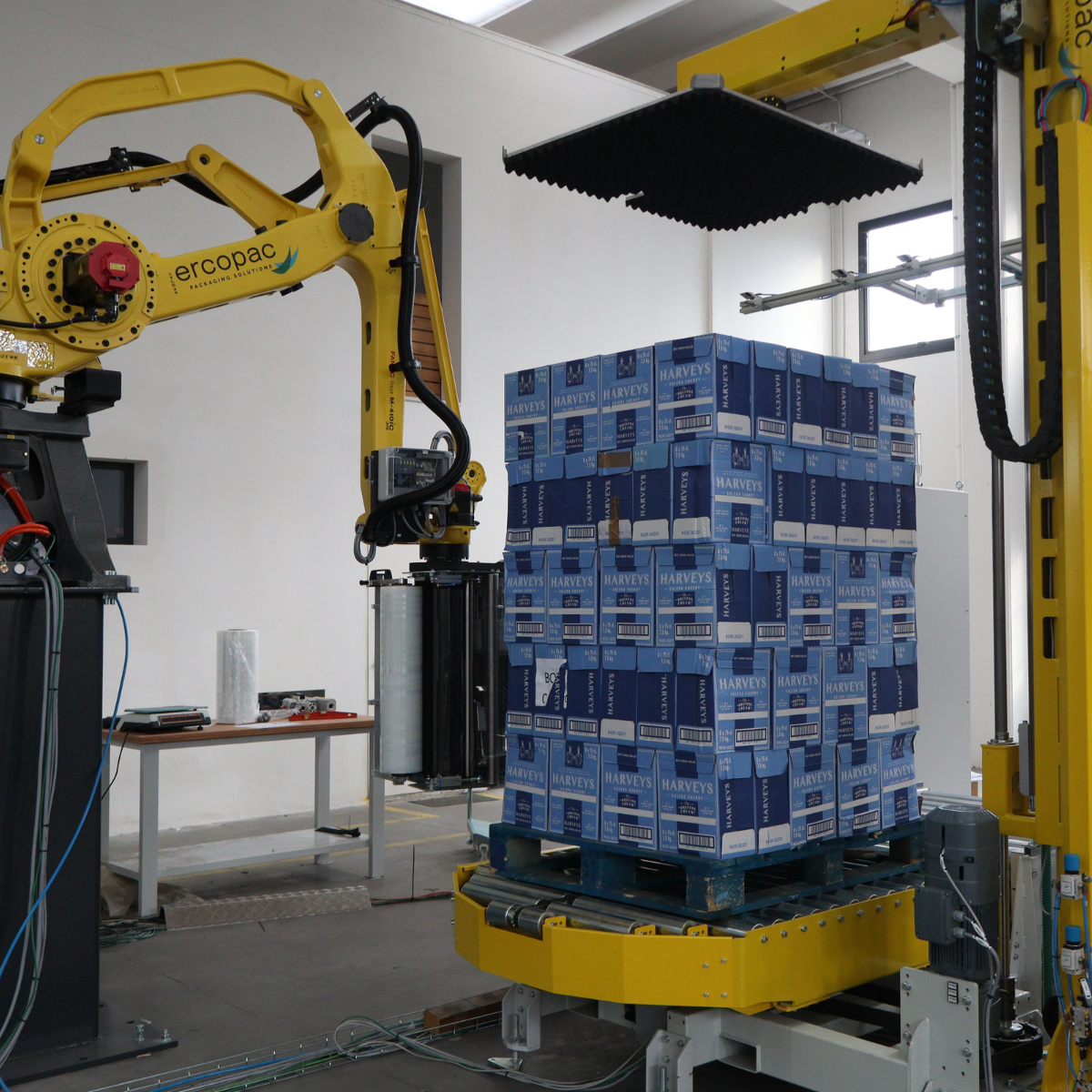

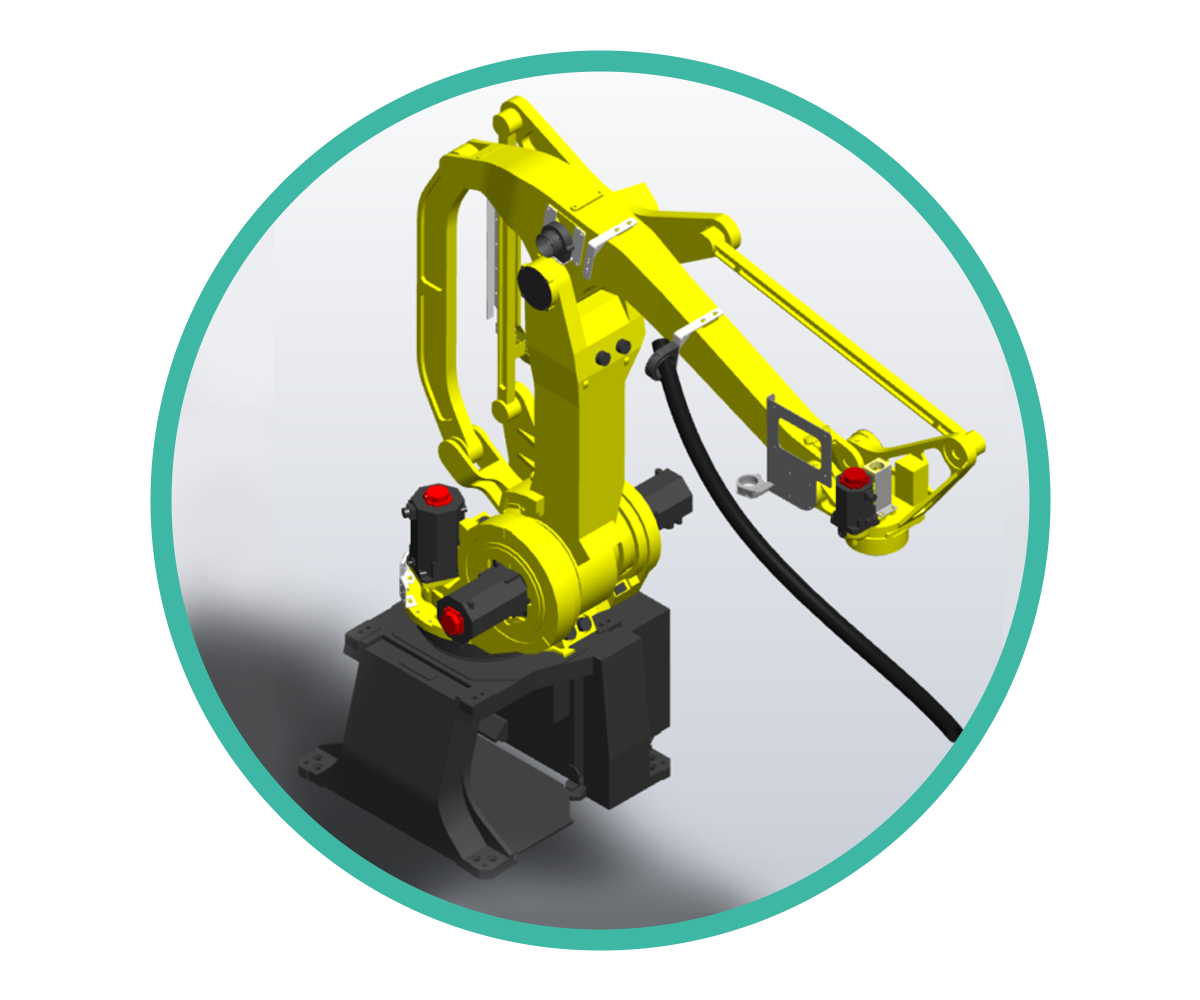

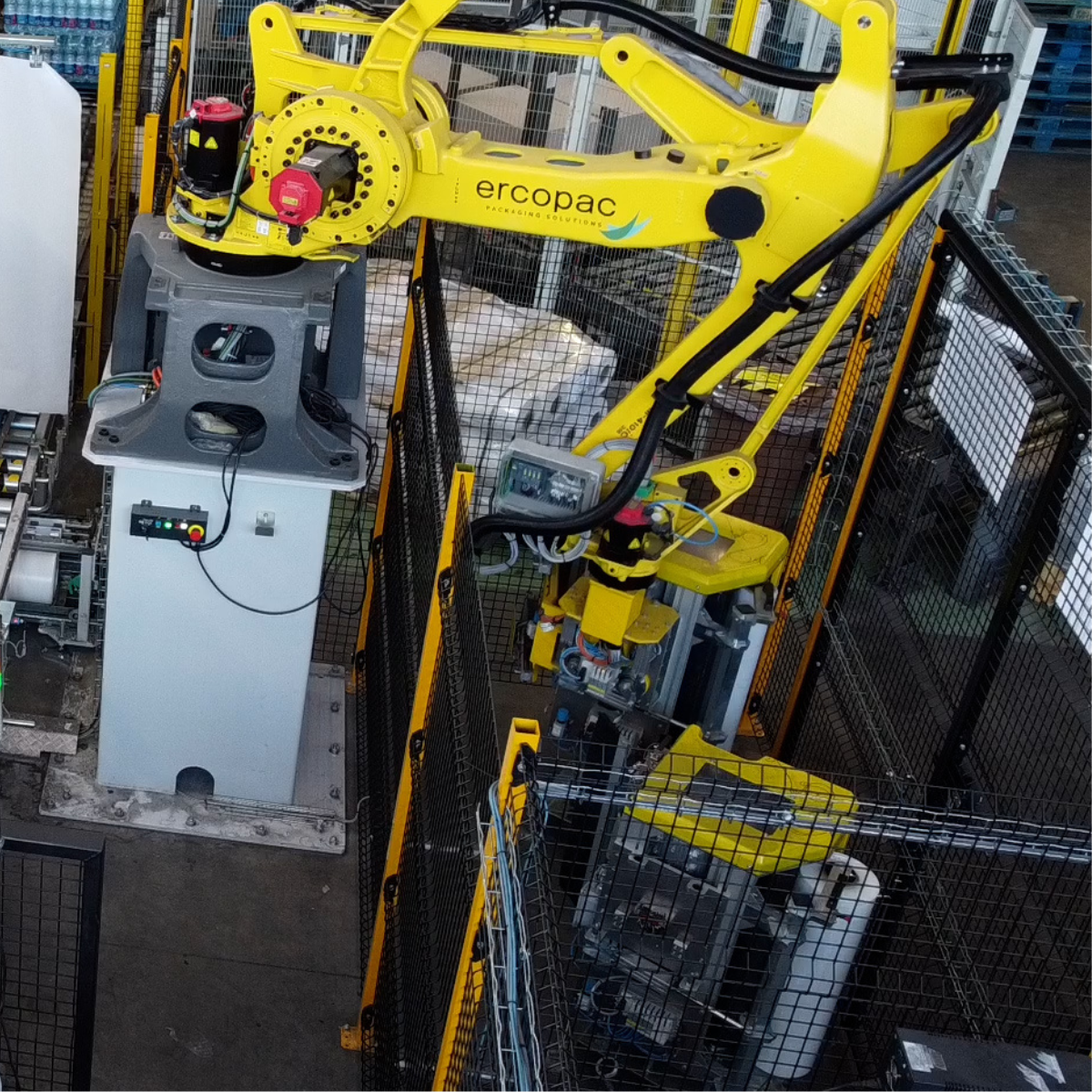

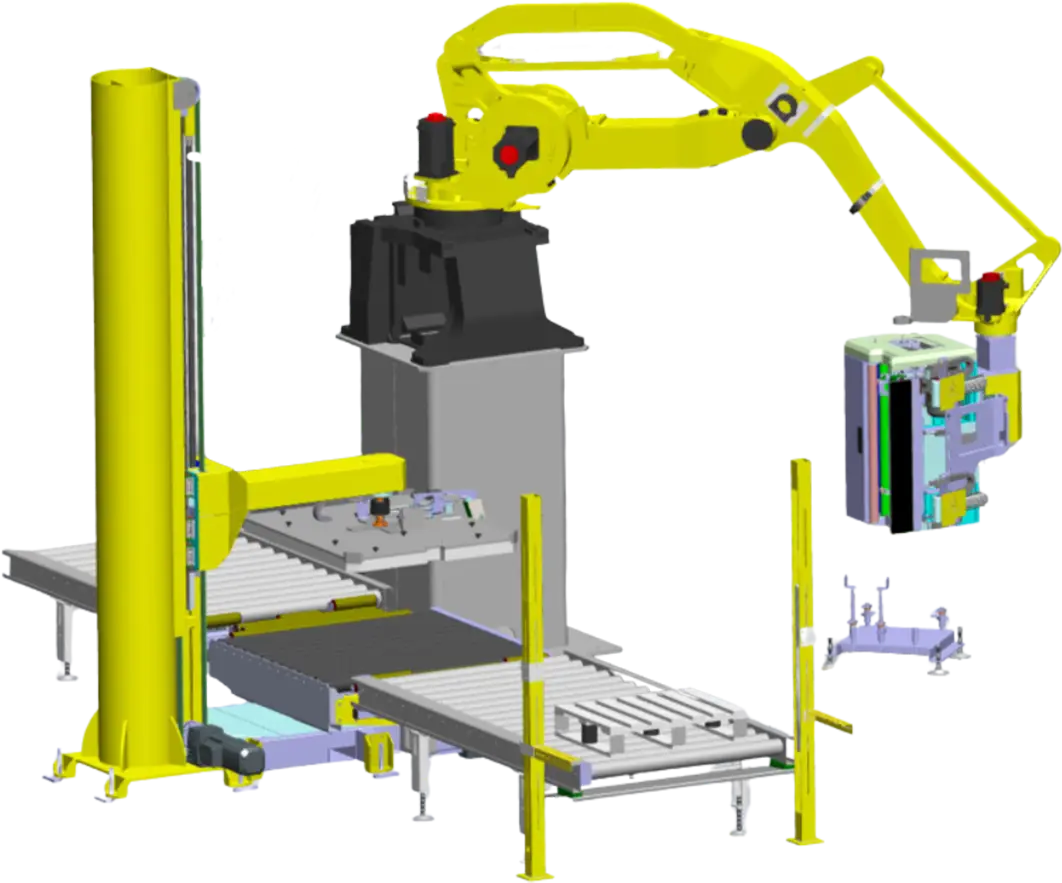

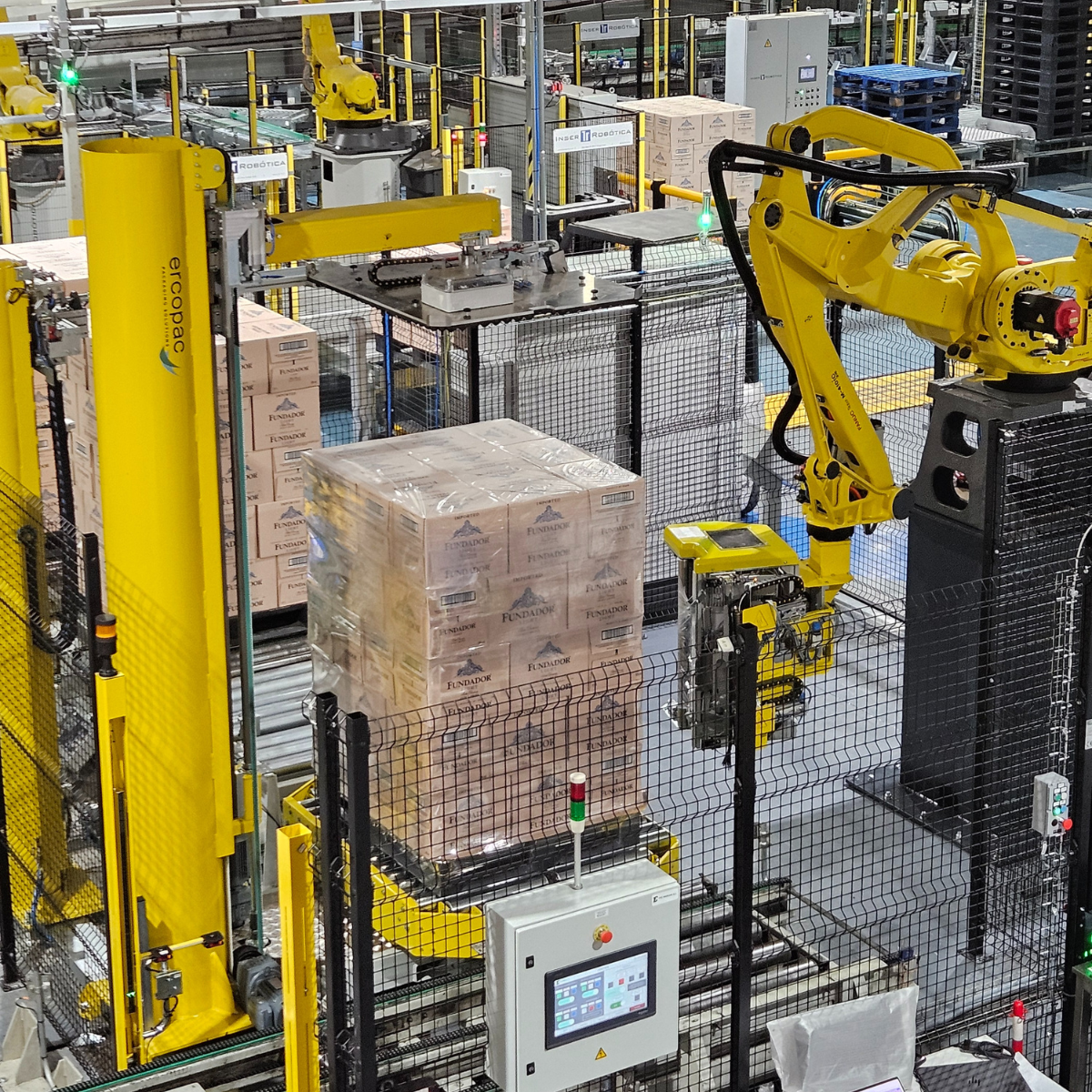

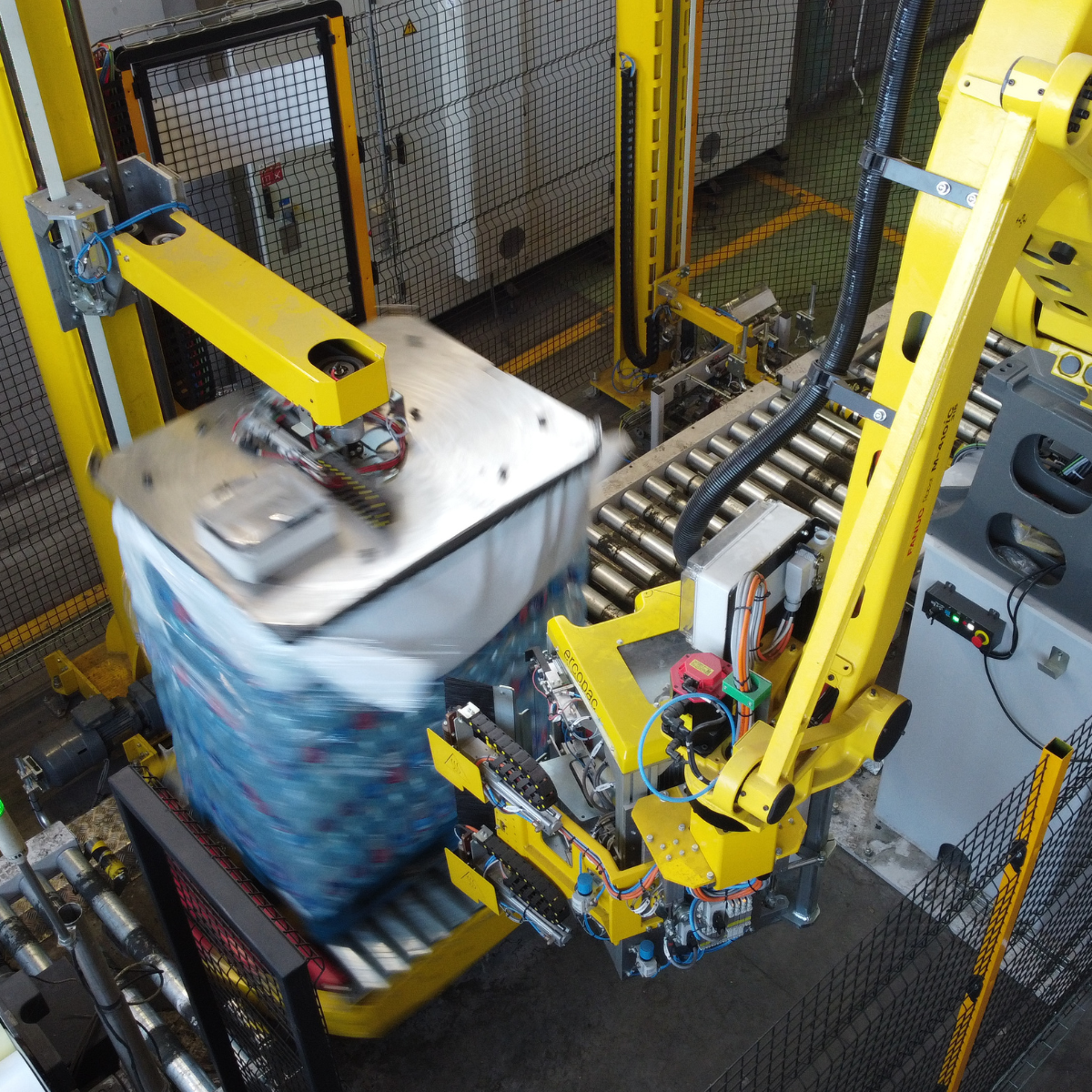

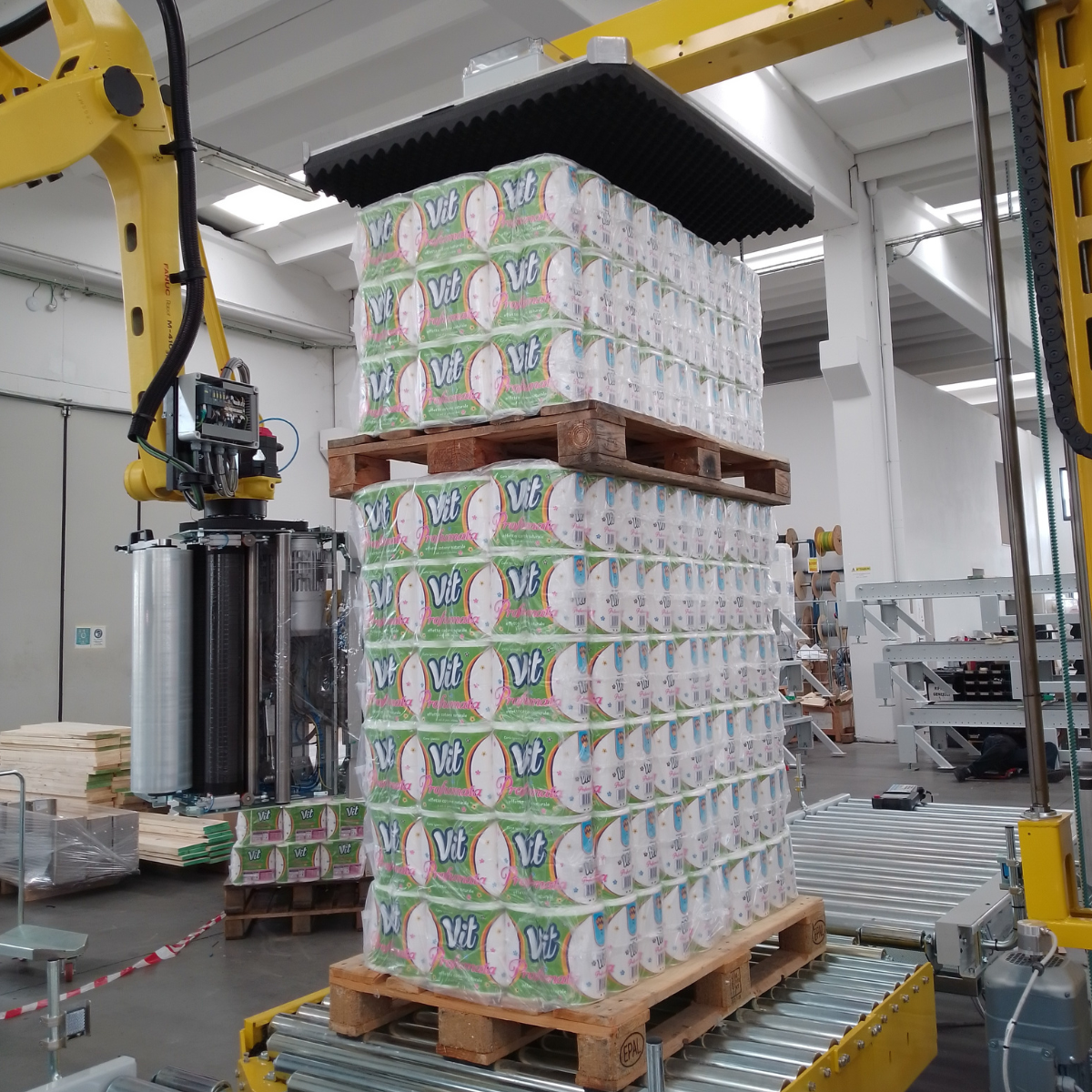

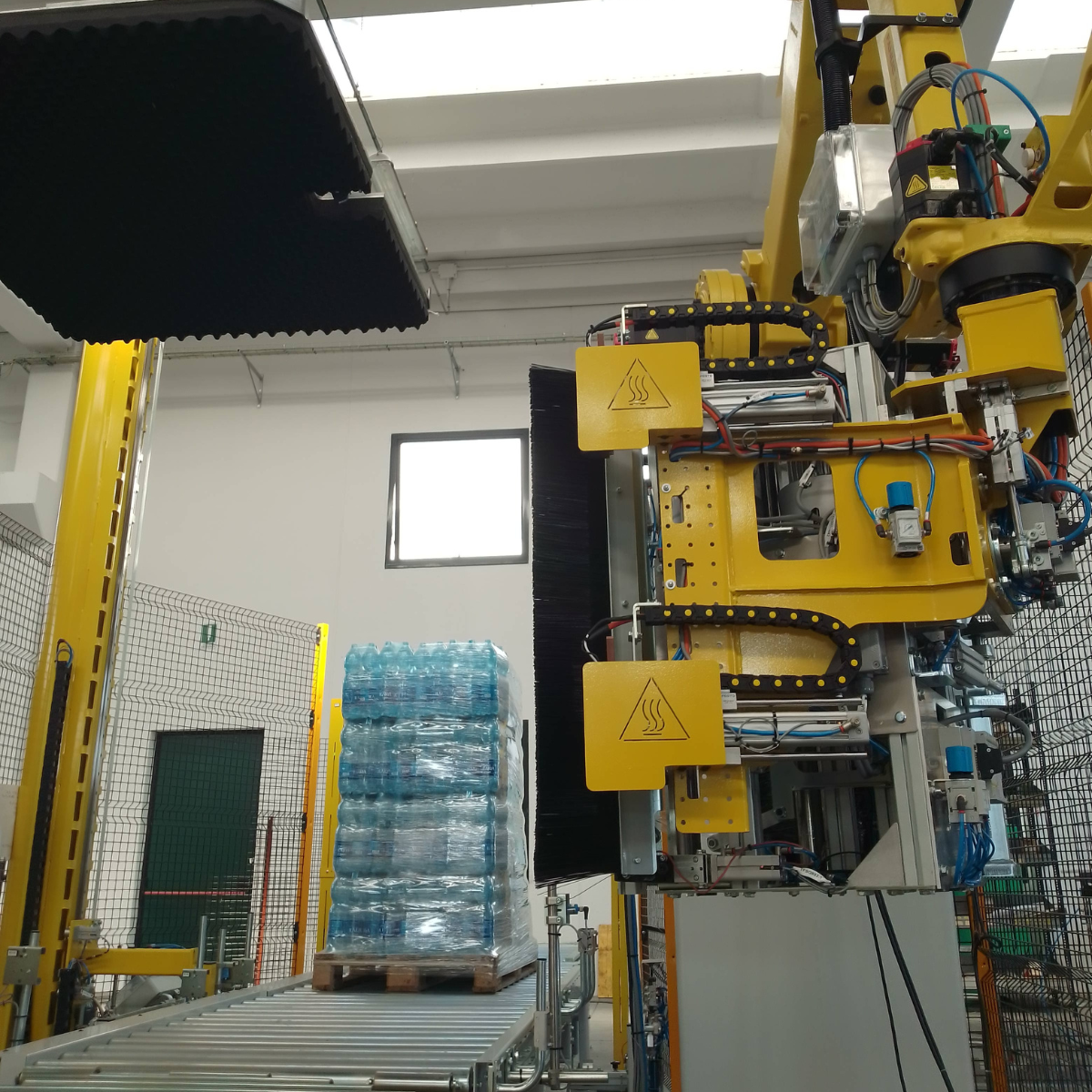

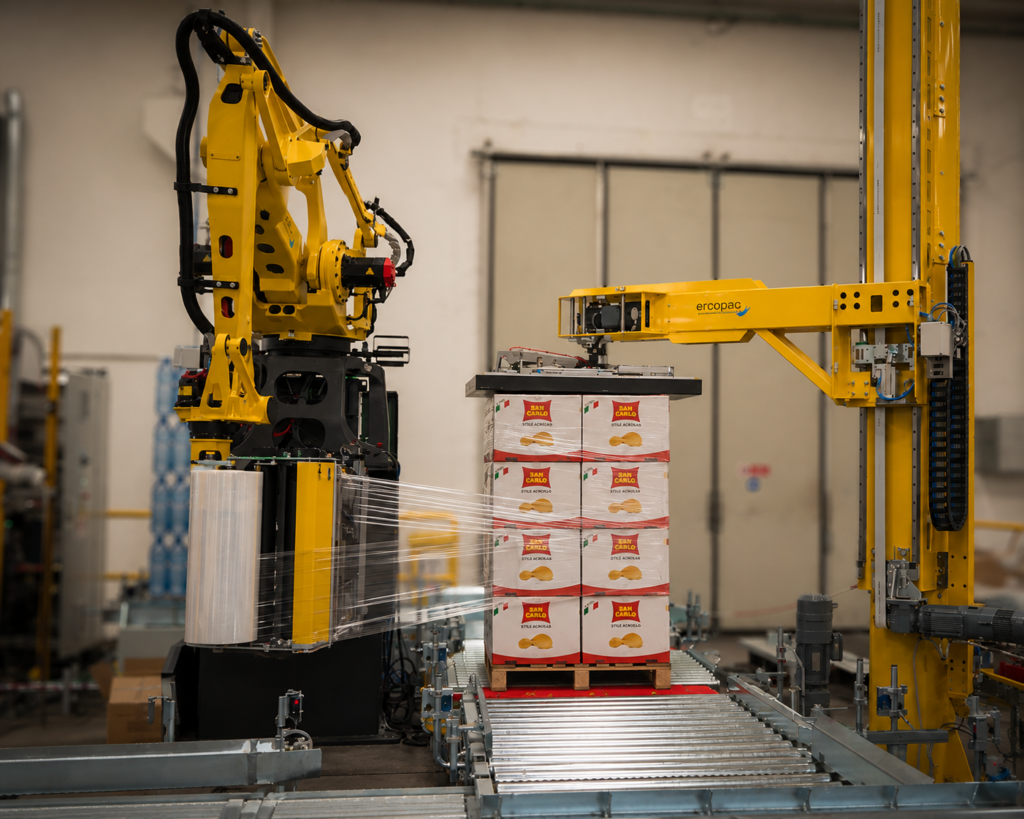

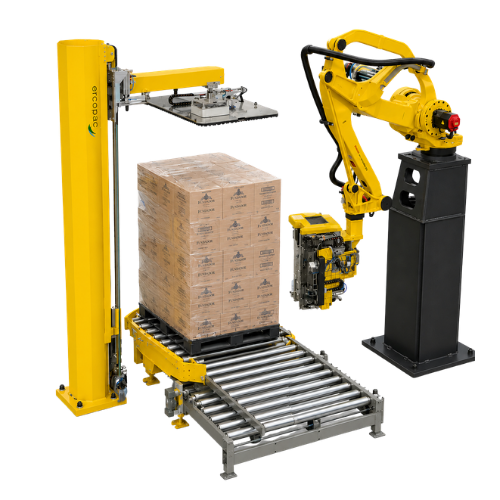

SPIDER-R is Ercopac’s robotic wrapper featuring a 6-axis anthropomorphic robot, designed for automatic pallet wrapping in highly complex and high-productivity environments.

02 It ensures precision

Unlike column-type systems, SPIDER-R directly controls the wrapping head via the robot, enabling completely free and three-dimensional movements, maximum precision in film placement, and the ability to create advanced and customized wrapping patterns—including targeted reinforcements at critical points such as the base, edges, and top of the pallet.

03 It allows adaptability

The modular structure of the SPIDER range ensures that major components and spare parts are shared across models, facilitating upgrades and keeping operating costs low over time. The system is suitable for both new lines and existing facilities.

Types of Wrapping and Applications

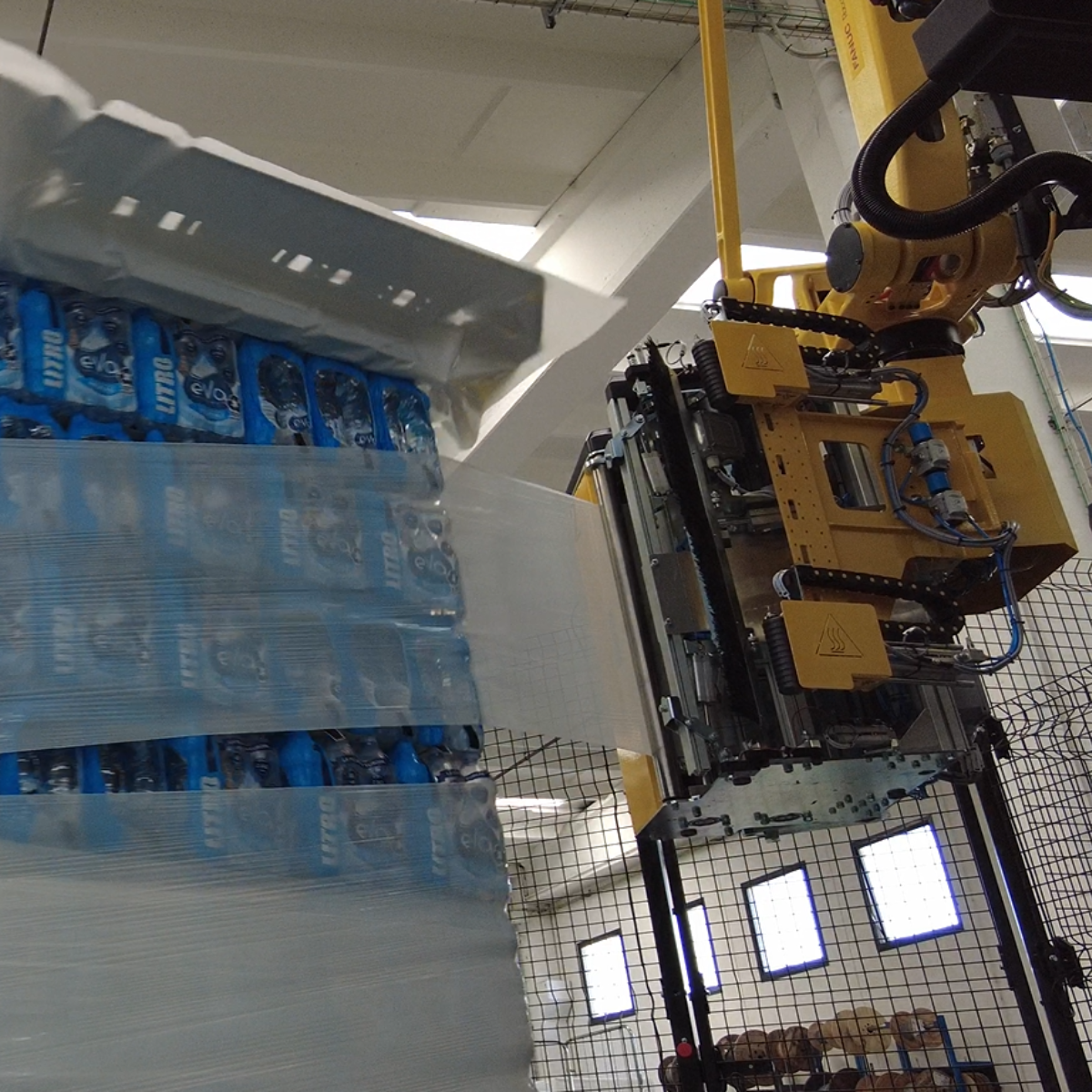

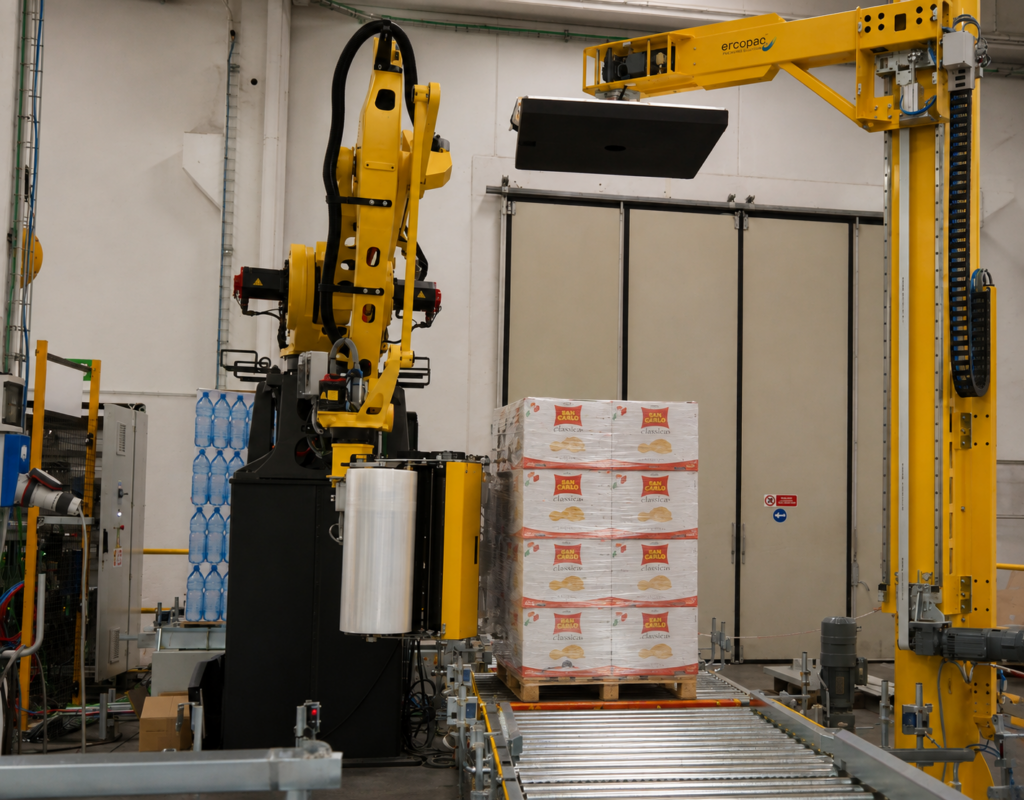

SPIDER-R supports the main wrapping modes: side wrapping, dust-proof, and water-proof. The patented water-proof cycle provides complete pallet protection in a single cycle, with air blasts and counter-blasts that keep the top film raised during wrapping.

The system is suitable for bottles, cartons, cans, boxes, and other products packaged in cartons, bundles, bags, trays, and other compatible packaging.

Performance

SPIDER-R is available in the High Speed configuration, optimized for high-throughput lines:

Euro pallets: up to 130 pallets/hour with 9 wraps
Half pallets: up to 200 pallets/hour with 7 wraps

For lower throughput rates, Ercopac offers SPIDER-C in the configuration best suited to the line’s requirements.

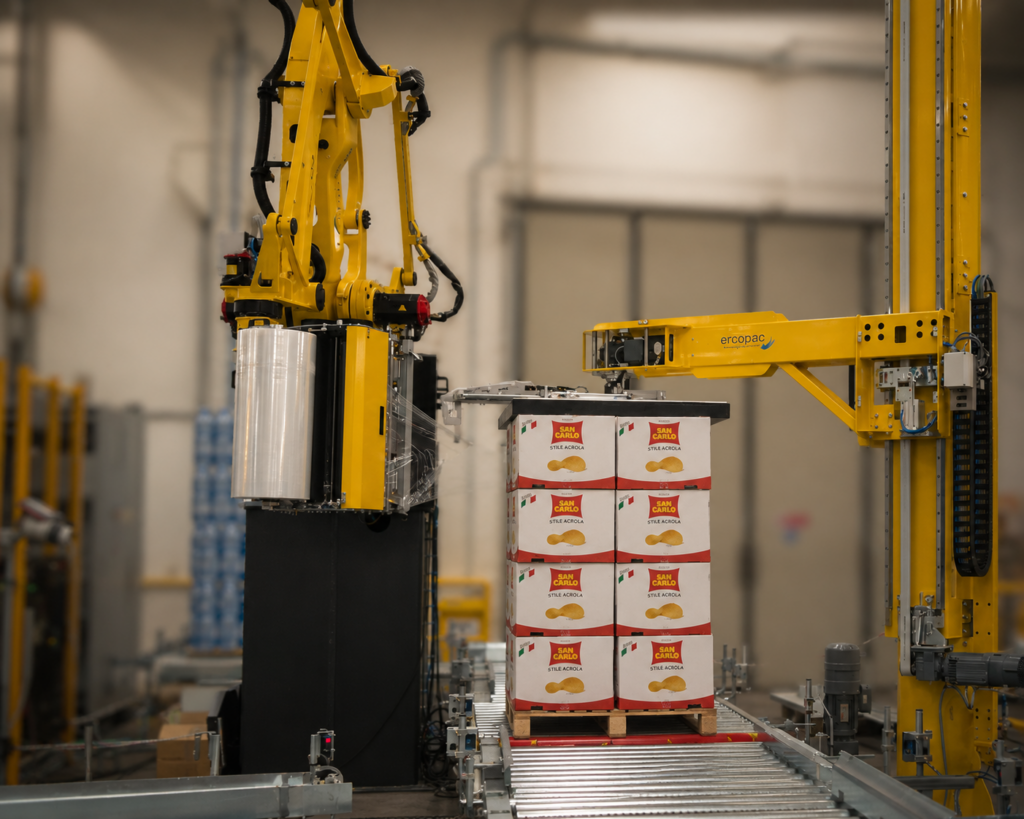

Automatic head changeover in 25 seconds

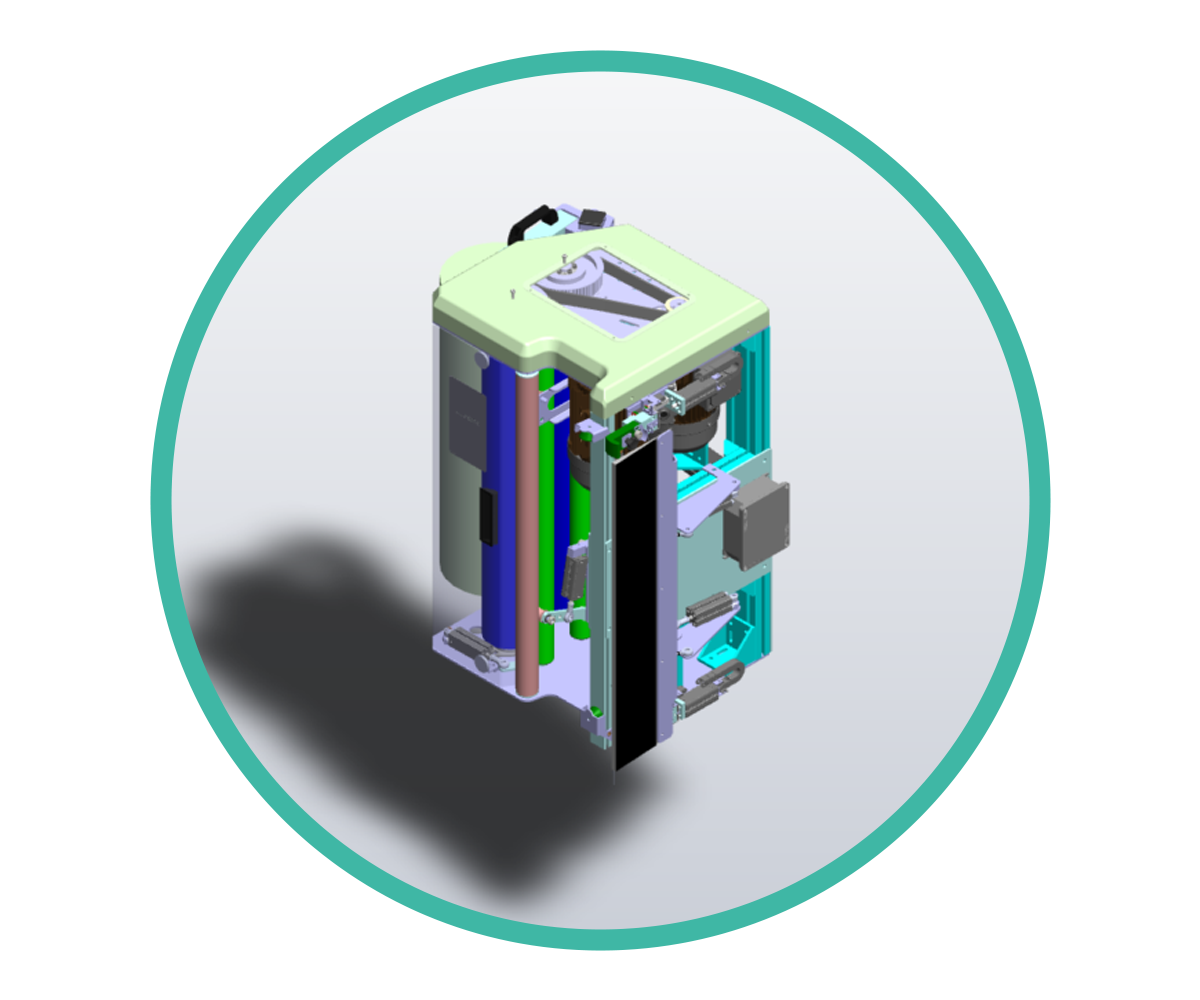

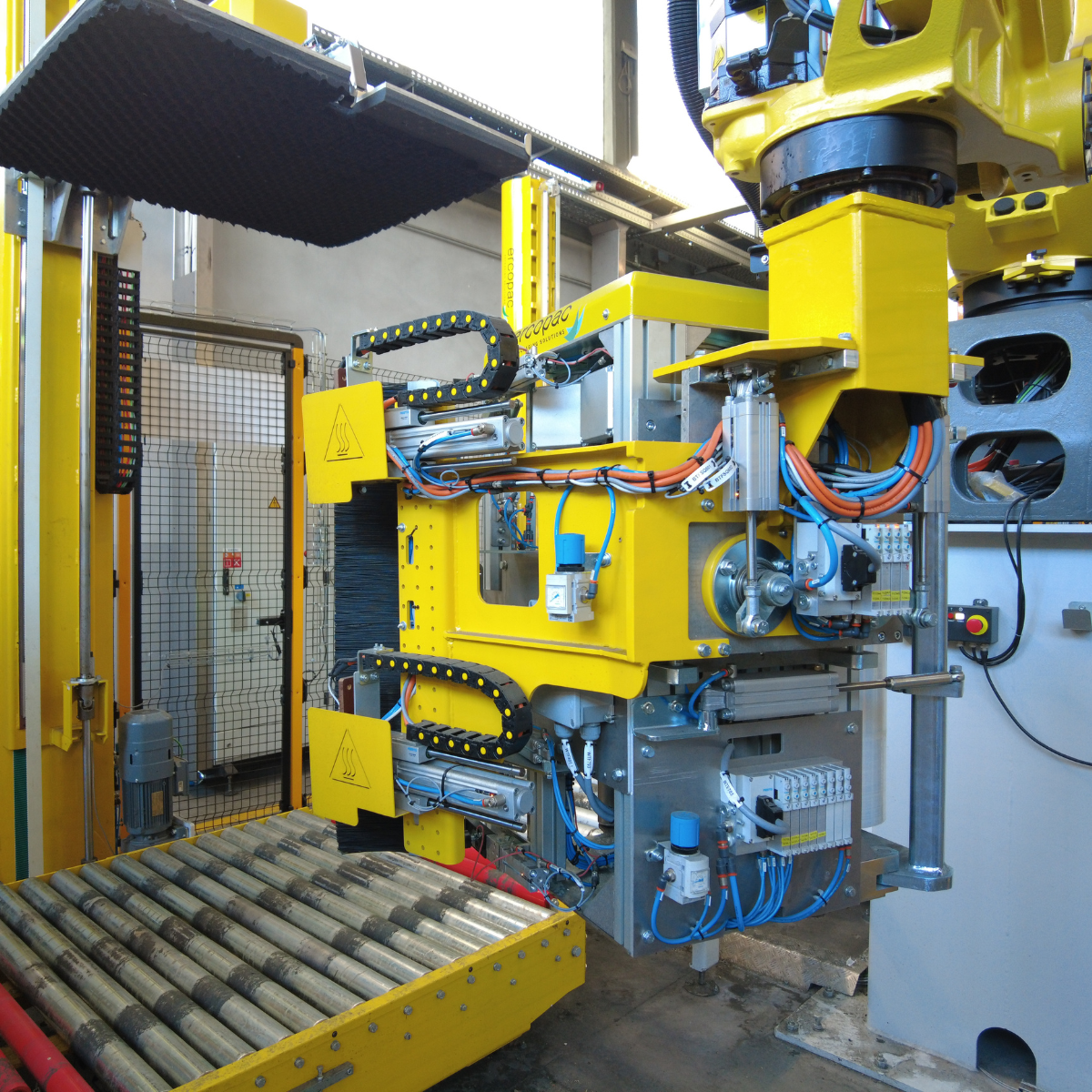

The SPIDER-R’s automatic head changeover takes just 25 seconds—the fastest time available on the market. The interchangeable wrapping heads allow for film restoration in the event of a break or roll replacement without production downtime and in complete safety, increasing line efficiency and reducing backlogs.

Ercopac’s new automatic change system is the fastest on the market and allows for head replacement in 25 seconds.

Energy Savings and Transition 5.0

SPIDER wrappers contribute to Transition 5.0. SPIDER-R delivers benefits on multiple fronts:

Energy savings: lower consumption thanks to optimized robot movements and reduced mechanical maintenance
Plastic reduction: the 750 mm reel optimizes lateral film distribution with a 10–20% savings
Sustainability: compatibility with recyclable film from 11 to 45 μ and with recycled film
Waste and return reduction: thanks to the patented in-line wrapping test

Wrapping Film Specifications

SPIDER-R works with films ranging from 11 to 45 μ with a pre-stretch capacity of up to 500%. The 750 mm reel is the recommended configuration for optimizing film distribution. The system accepts rolls weighing between 24 and 70 kg and also in 500mm and 1000mm lengths.

OPTIONS

Available options

The most relevant options for SPIDER-R:

Automatic head change in 25 seconds — the fastest on the market
Automatic corner applicator
WASP film perforation system (patented)

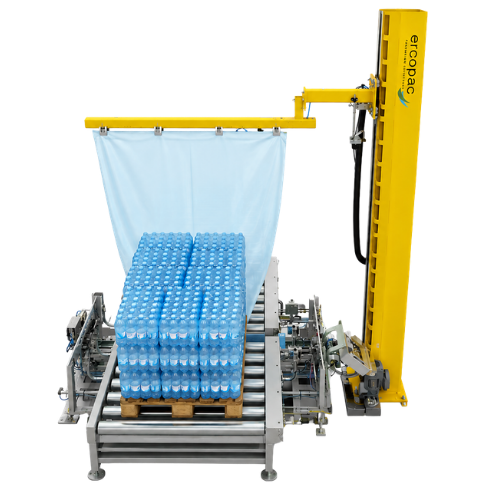

Top cover (patented)
Incoming pallet centering
Incoming half-pallet splitting
Outgoing half-pallet joining
Top strap
External sealer

When to choose SPIDER-R

When you want to maximize film efficiency

Thanks to customized cycles, SPIDER-R applies film only where it’s needed, reducing waste and lowering material costs without compromising wrap quality.

When you need advanced wrapping patterns

It allows for targeted reinforcement at critical points on the pallet: base, corners, top. Custom patterns that cannot be achieved with traditional column-based systems.

When operating on highly complex or variable production lines

Robotics allows for dynamic adaptation to different production conditions: pallets with irregular geometries, variable products, and differentiated wrapping requirements.

When you want the highest level of technology available

It is Ercopac’s top-of-the-line solution for wrapping: no compromises on flexibility, performance, and wrap quality.

Request the SPIDER-R technical data sheet

Fill out the form to receive the technical specifications of the SPIDER-R robotic wrapper and evaluate the configuration best suited for your end-of-line needs.

EXTRA

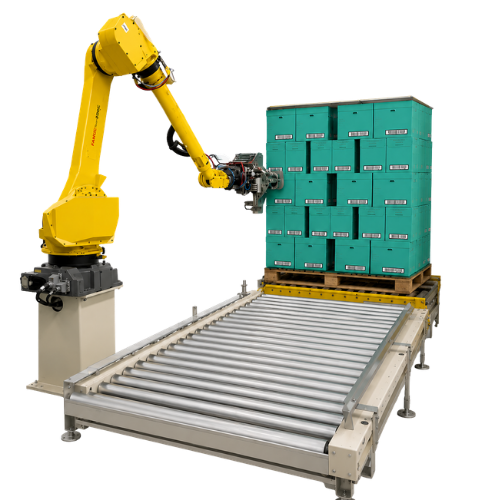

EDGE PROTECTION INSERTER

Single/double edge gripper

Single edge stacker or automatic edge changeover

PERFORATION SYSTEM

Film perforation system designed to prevent condensation from forming inside the pallet.

The system allows automated perforation on all four sides of the pallet, adapting precisely to the specifications of each format.

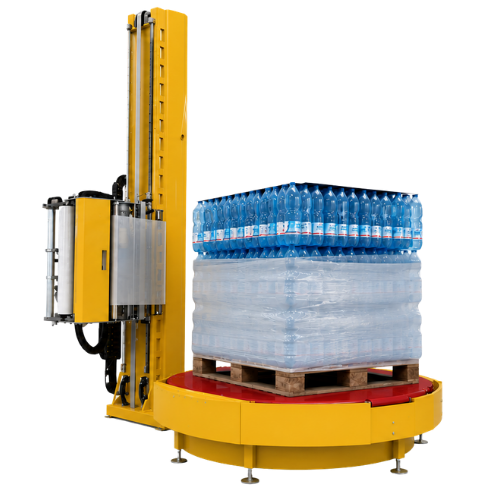

Spider-S

Wrapping system with Cartesian robot

Our range of column stretch wrappers stands out for the quality of the wrapping, high performance, and compact layout…

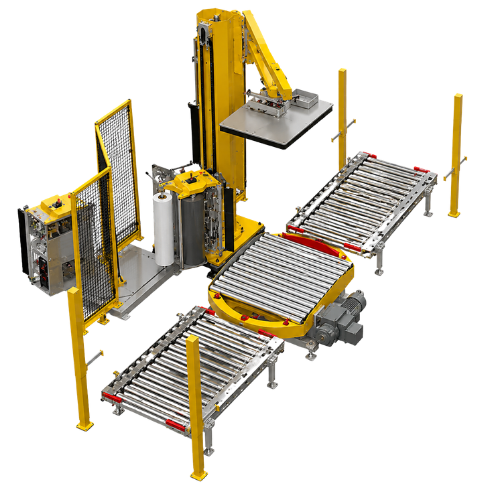

Spider-C
