Layer preparation robot | anthropomorphic or delta

OCTOPUS is Ercopac’s anthropomorphic or delta robot for layer preparation: it receives products from the line, arranges them according to the defined pattern, and builds the complete layer ready for the palletizer.
Available in two configurations: OCTOPUS (anthropomorphic robot with 5-axis arm) and OCTOPUS DELTA (high-performance delta robot).

Speed and precision

Repeatable movements over time with excellent acceleration. Anthropomorphic OCTOPUS: 5-axis arm with optimal cycle times. OCTOPUS DELTA: up to 50 cycles/min handling 3 to 4 bundles.

Reduced machine downtime

Standard components for quick replacement. Integrated electrical and pneumatic connections that reduce downtime and enable rapid maintenance.

High load capacity

OCTOPUS DELTA handles wrist payloads ranging from 30 to 70 kg, combining high speed and high capacity in a single system—two features that are typically incompatible in traditional robots.

Compact footprint

Ergonomic design with minimal footprint for the anthropomorphic OCTOPUS. OCTOPUS DELTA with gantry structure: installed above the handling area, it leaves the floor workspace unobstructed.

Layer preparation robot: the two configurations

What does OCTOPUS do

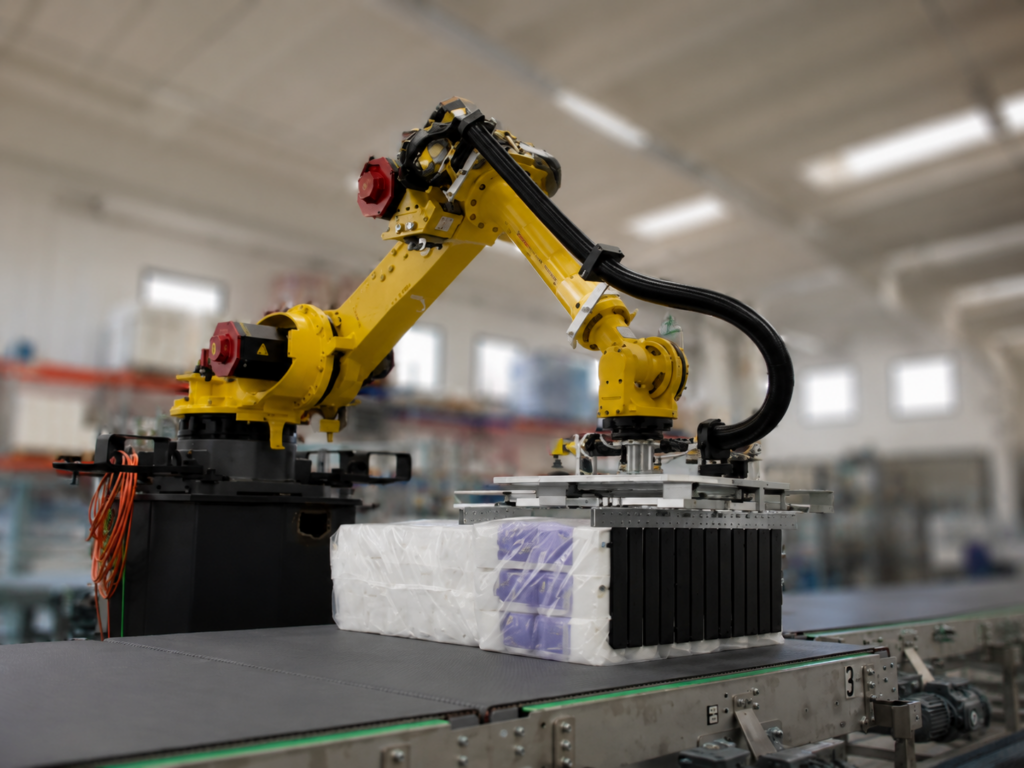

01 It forms the layer

OCTOPUS is Ercopac’s anthropomorphic or delta robot designed for layer-forming in palletizing lines.

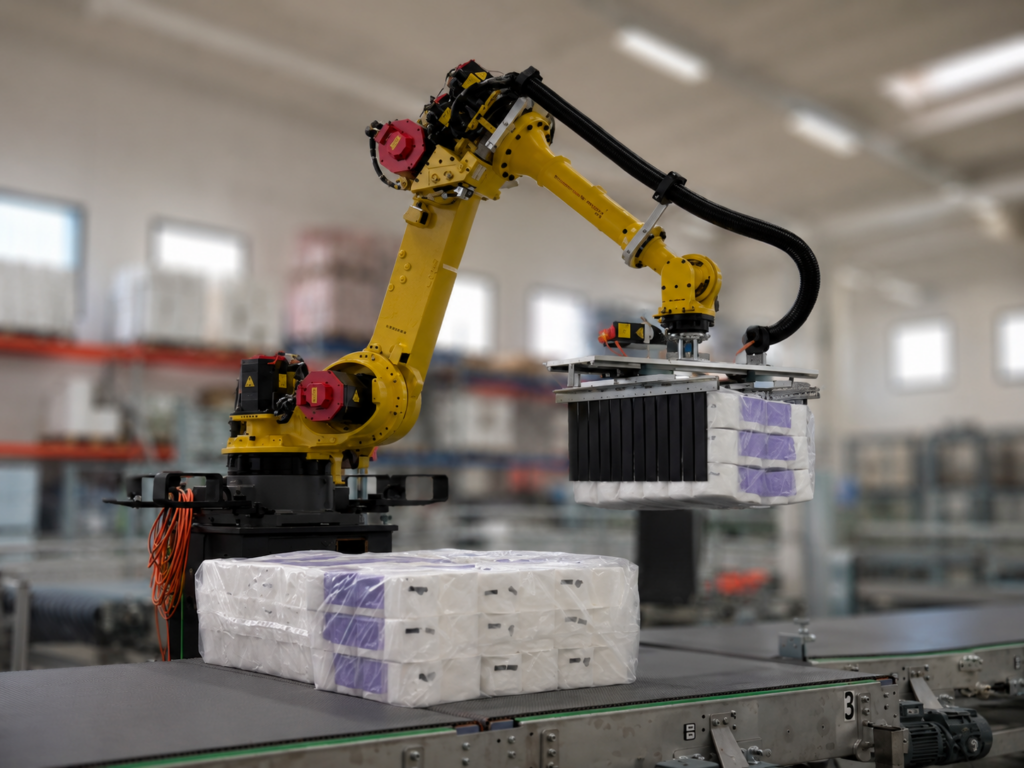

02 It arranges the transfer

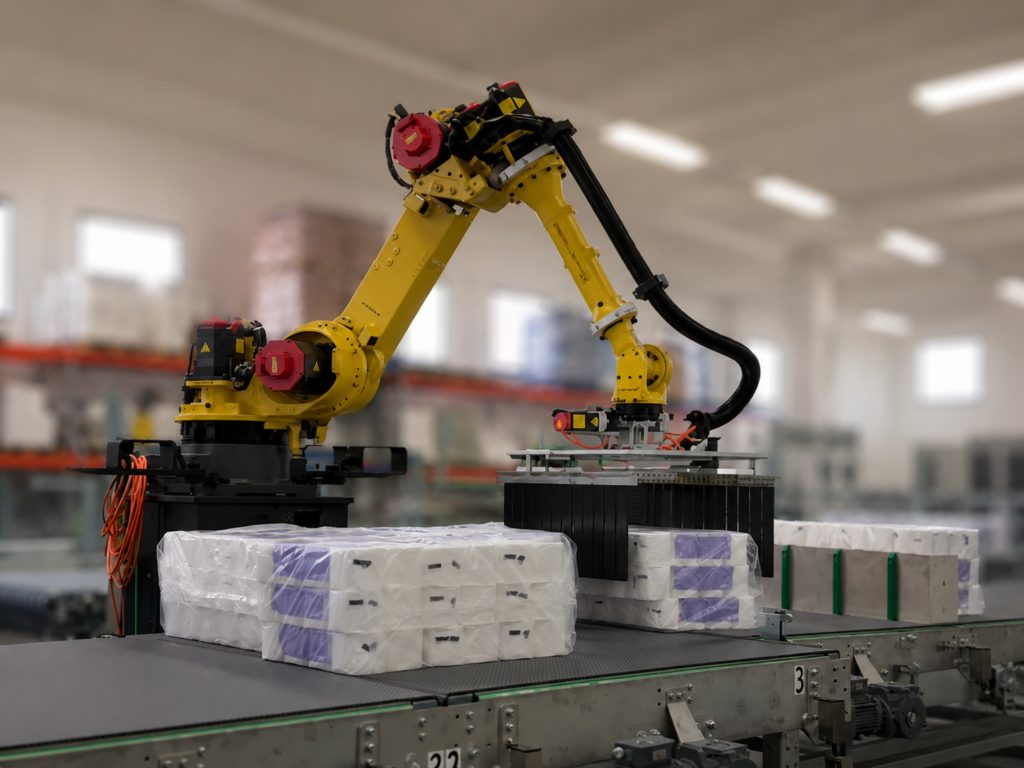

The layer preparation robot operates at the stage immediately preceding palletizing: it receives products exiting the line, arranges them according to the pallet pattern, and prepares the complete layer for transfer.

03 Ensures quality

This is a critical phase because it determines the quality of the layer, the final stability of the pallet, and the overall speed of the line.

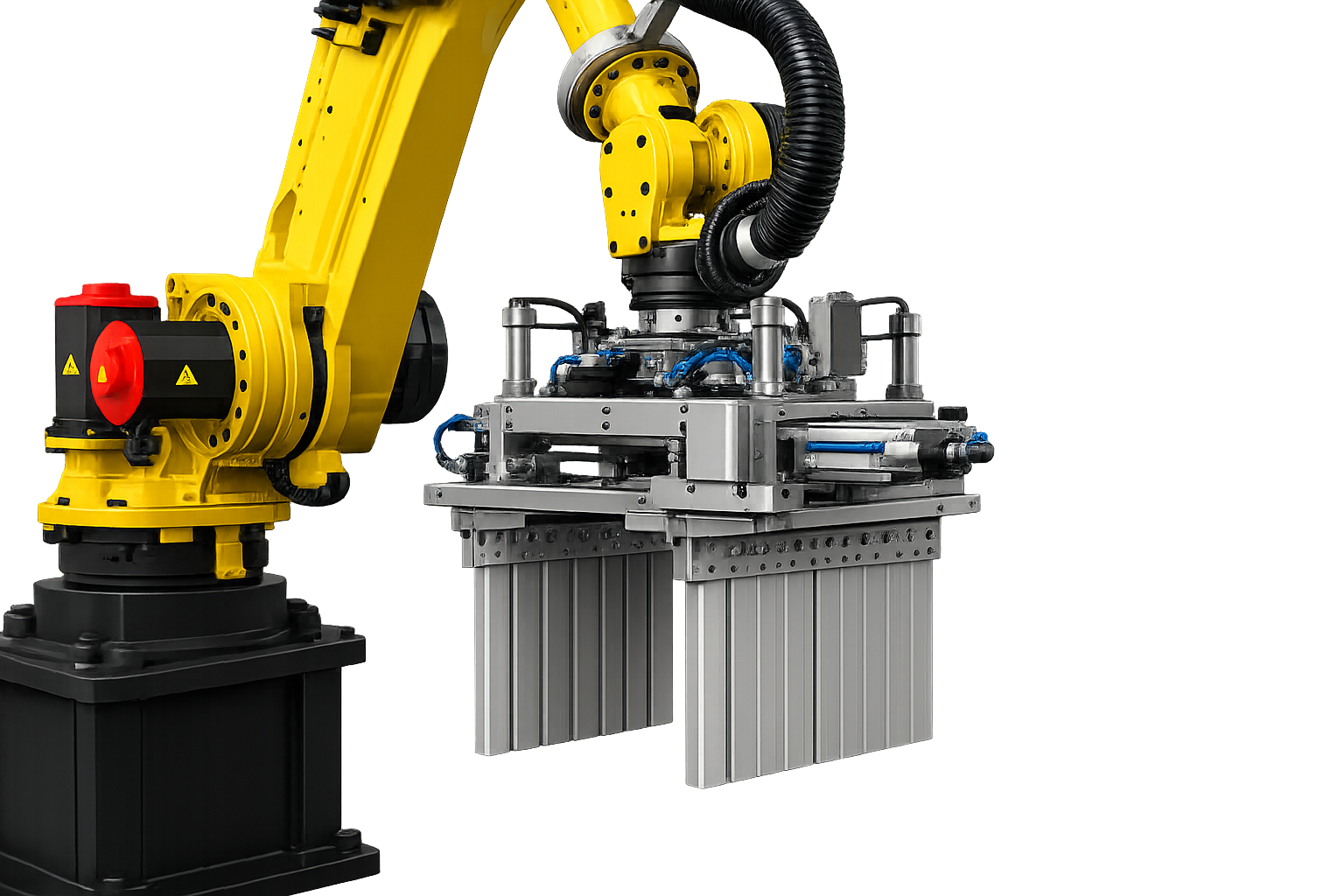

Anthropomorphic OCTOPUS: precision and flexibility

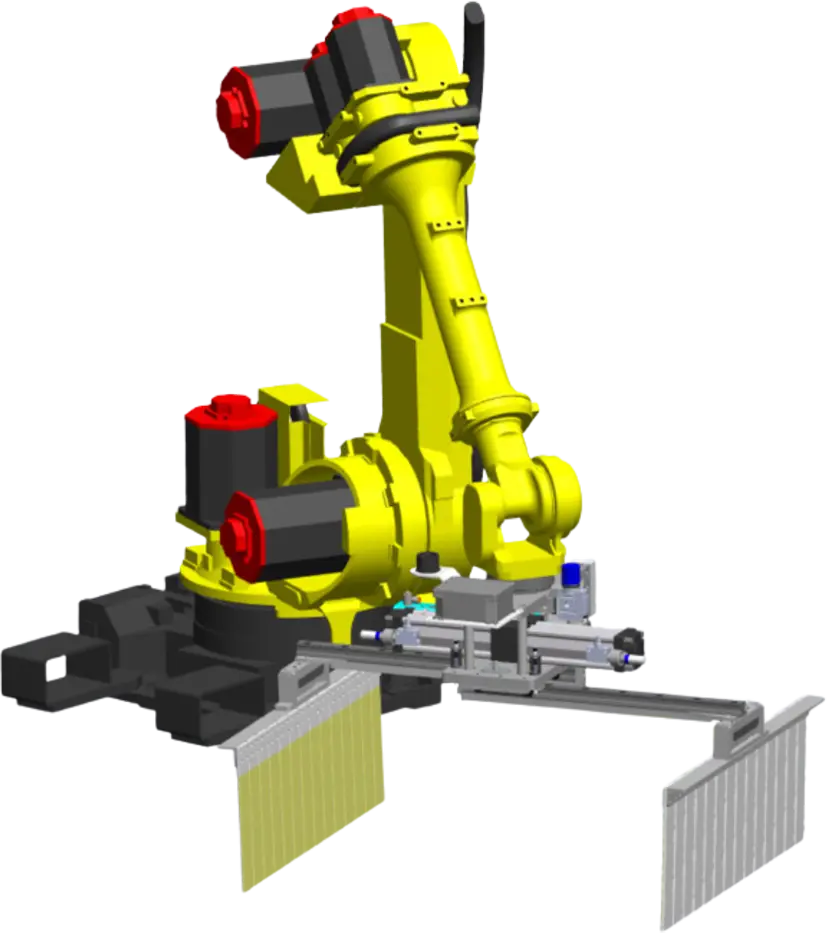

The anthropomorphic version of OCTOPUS is equipped with a 5-axis arm that ensures repeatable movements over time with excellent acceleration. Thanks to its ergonomic design and minimal footprint, it is ideal for compact cells and facilities where space is limited.

The anthropomorphic version is the ideal choice when simplifying the production line compared to traditional mechanical systems: it is easily reconfigurable, less constrained by a single format, and suitable for both new installations and plant retrofits of existing systems.

ALTERNATIVE

OCTOPUS
DELTA

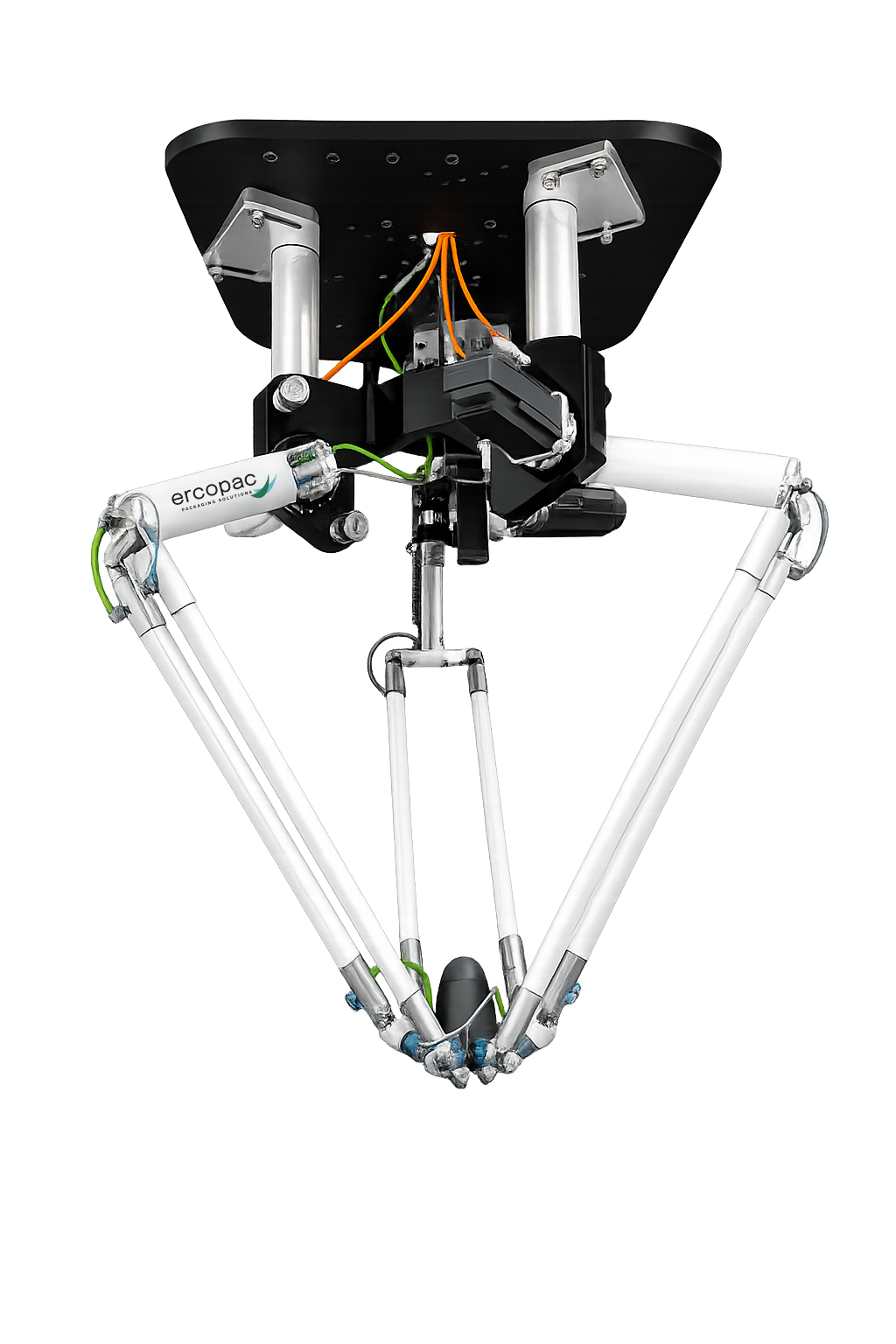

High-performance layer preparation robot developed with Zodiac Robotics, combining high speed and load capacity to surpass the limitations of traditional robots.

Maximum operating speed

Up to 50 cycles per minute handling 3 to 4 bundles: OCTOPUS DELTA is capable of handling the production load of two equivalent anthropomorphic robots.

Gantry structure

The robot is installed above the handling area, leaving the floor workspace completely unobstructed. Thanks to precise control of product positioning on the conveyor belt, handling is extremely accurate.

Precision and stability

Designed to minimize oscillations, with smooth and safe movements. Wrist payload from 30 to 70 kg.

Simplified maintenance

The integration of electrical and pneumatic connections reduces downtime and allows for quick interventions when necessary.

Adaptability to Different Product Formats

The system was originally designed with specific configurations for the Beverage and Tissue sectors, but it adapts to any type of product, ensuring flexibility and customization based on production needs.

OCTOPUS DELTA combines high speed and high load capacity: up to 50 cycles per minute and up to 70 kg, managed by two anthropomorphic robots.

Safety and sustainability

The OCTOPUS DELTA’s gantry structure prevents interference with operators, with controlled movements that comply with industrial safety standards. Optimized movements also reduce energy consumption, contributing to more sustainable production.

When to choose the OCTOPUS layer preparation robot (anthropomorphic robot)

When you want to simplify the line compared to traditional mechanical systems

It replaces rigid and complex systems with a more streamlined robotic solution that is easily reconfigurable and less constrained by a single format.

When you need to easily integrate the system into existing lines

Thanks to its versatility, it is ideal for retrofits or plant upgrades where space or configuration require adaptable solutions.

Quando hai bisogno di un sistema affidabile ma versatile nel tempo

The anthropomorphic robot guarantees a scalable solution, capable of evolving alongside production needs without having to redesign the entire line.

When to choose the OCTOPUS DELTA layer preparation robot

When you need maximum operating speed

Up to 50 cycles per minute handling 3 to 4 bundles: it replaces two anthropomorphic robots with a more compact and faster system.

When floor space is limited

The gantry structure leaves the workspace beneath the robot completely unobstructed, optimizing the line layout.

When you have high payloads at high speeds

Wrist payload from 30 to 70 kg with precise and stable movements: the solution when speed and capacity must coexist.

Request information about OCTOPUS

Contact us for further information on the OCTOPUS layer preparation robot and to evaluate the configuration best suited to your production line's needs.

Dragonfly

Robotic Layer Palletizer

Our robotic layer palletizing systems are designed to provide a customized solution to our customers’ needs

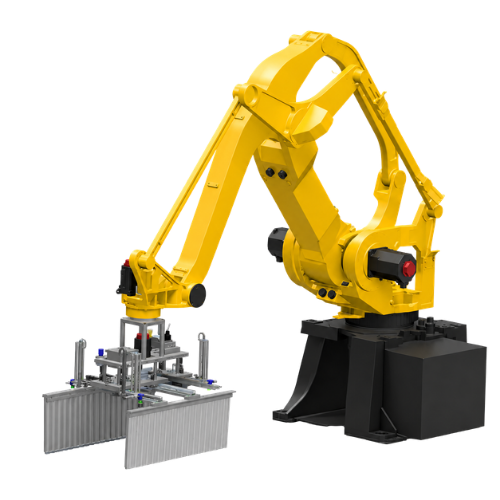

Lynx
