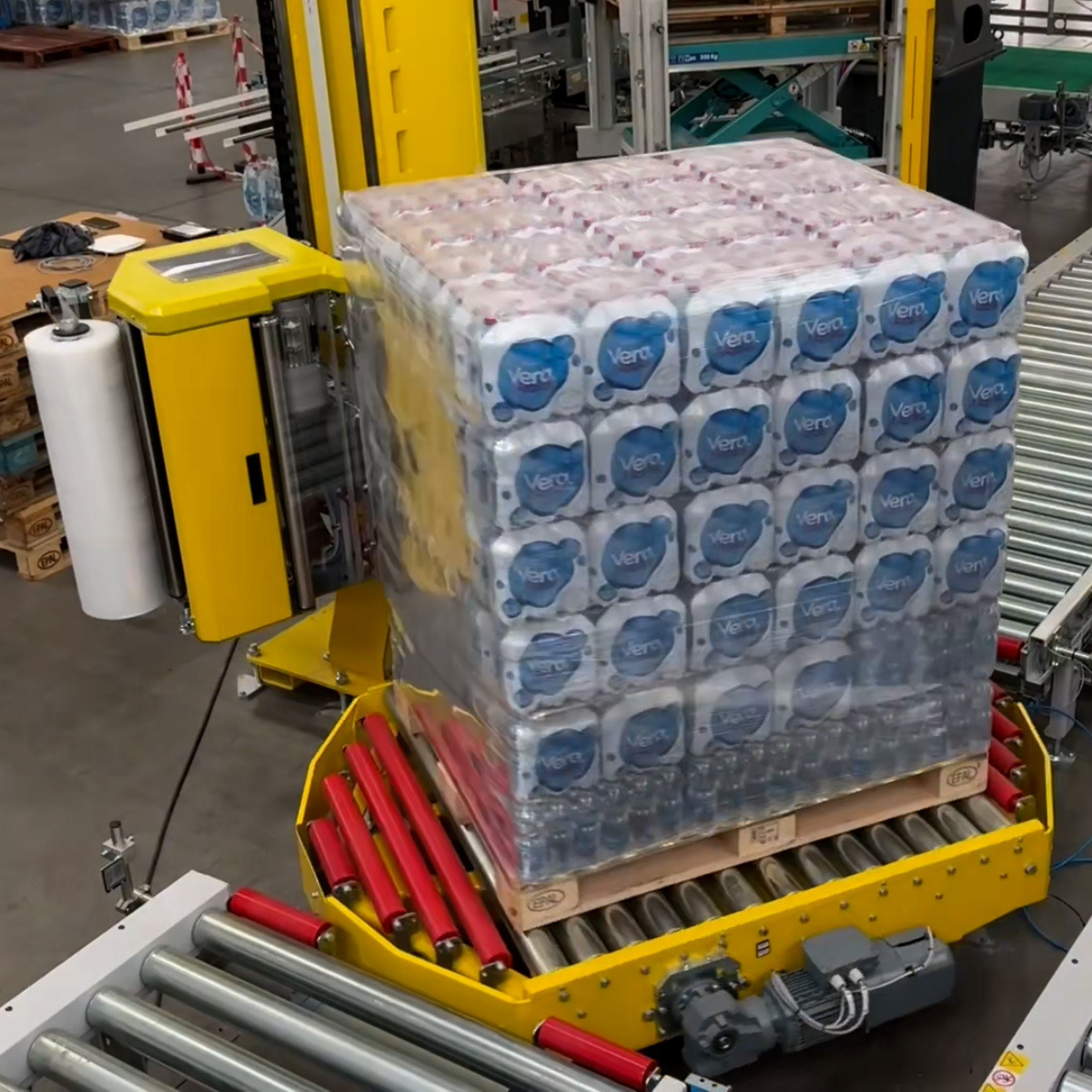

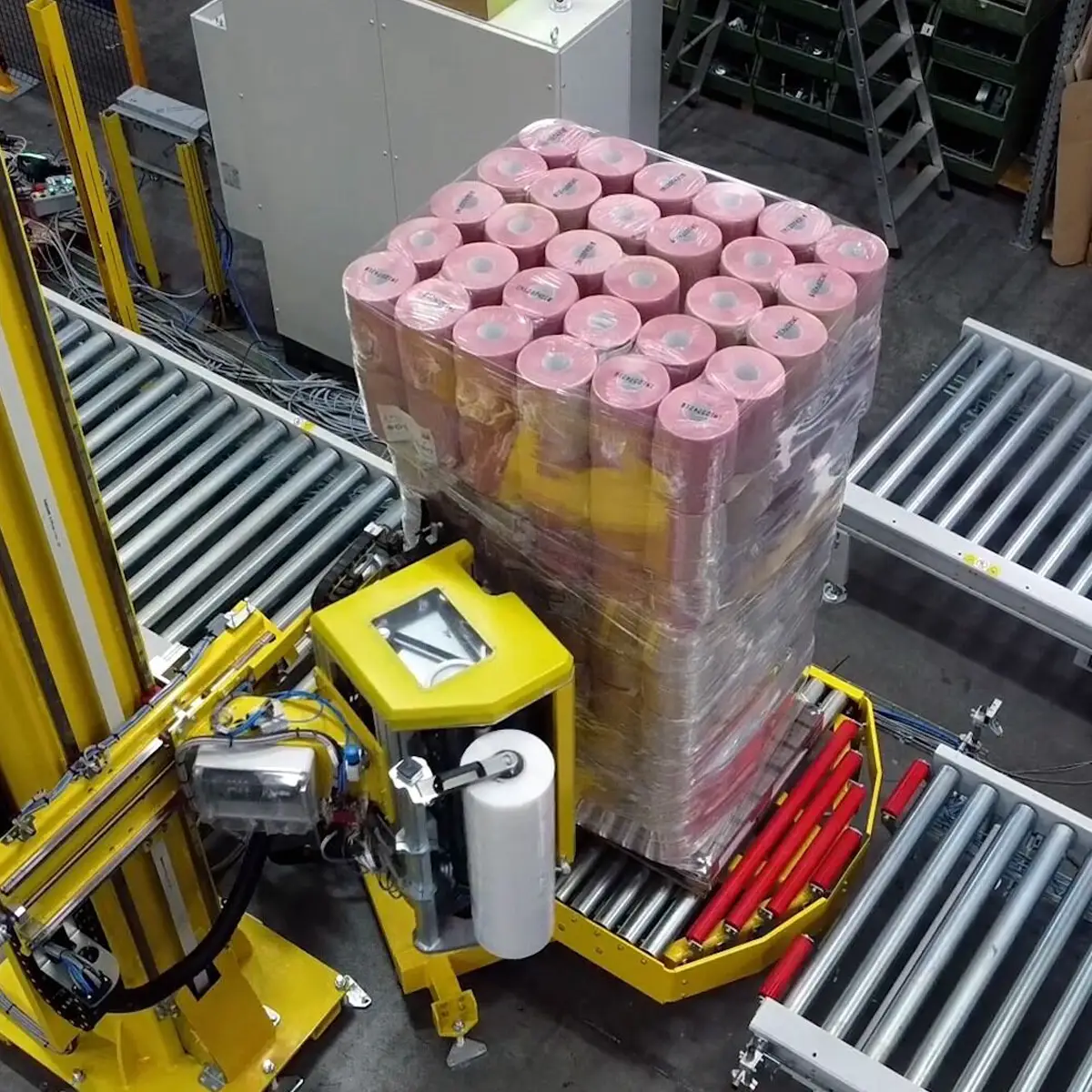

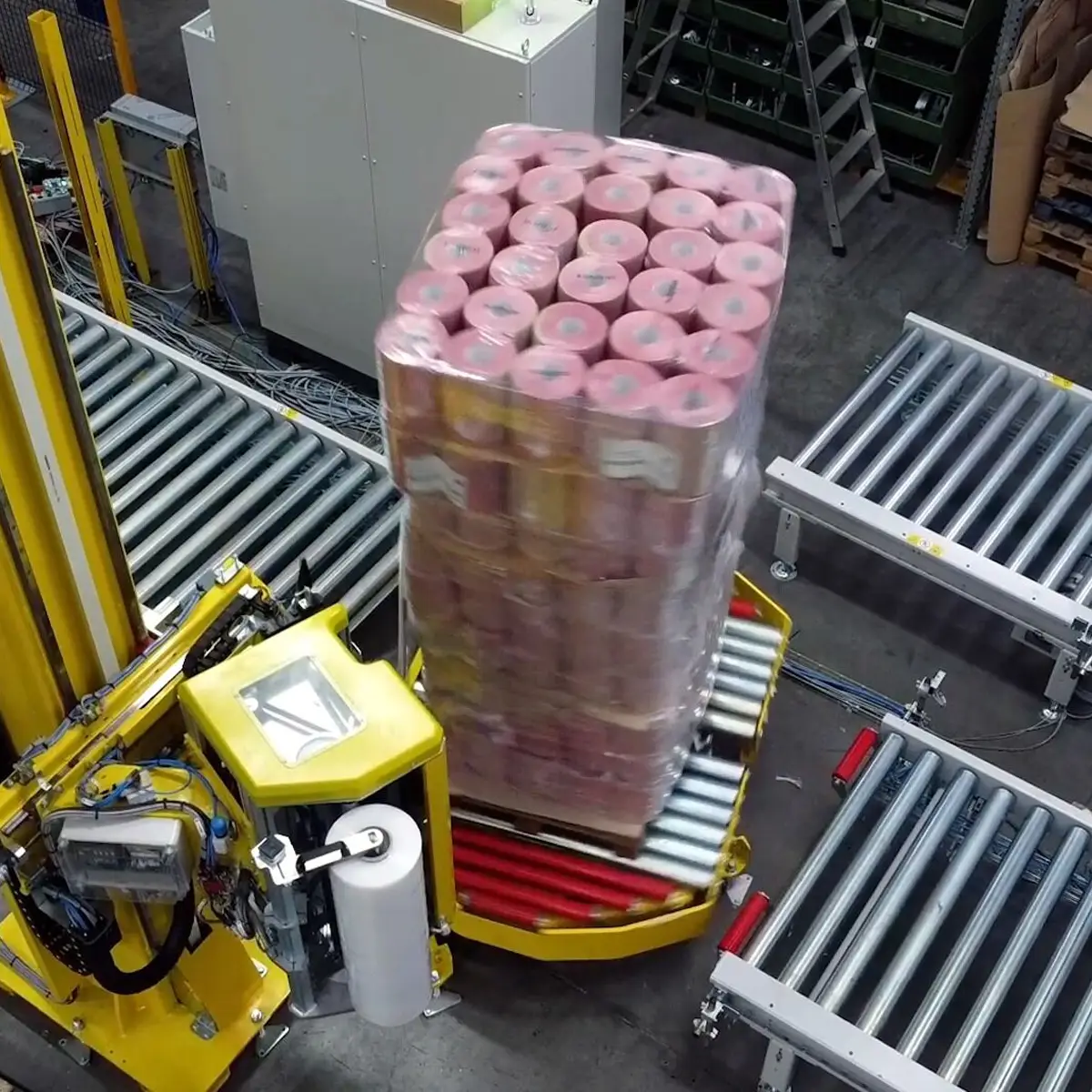

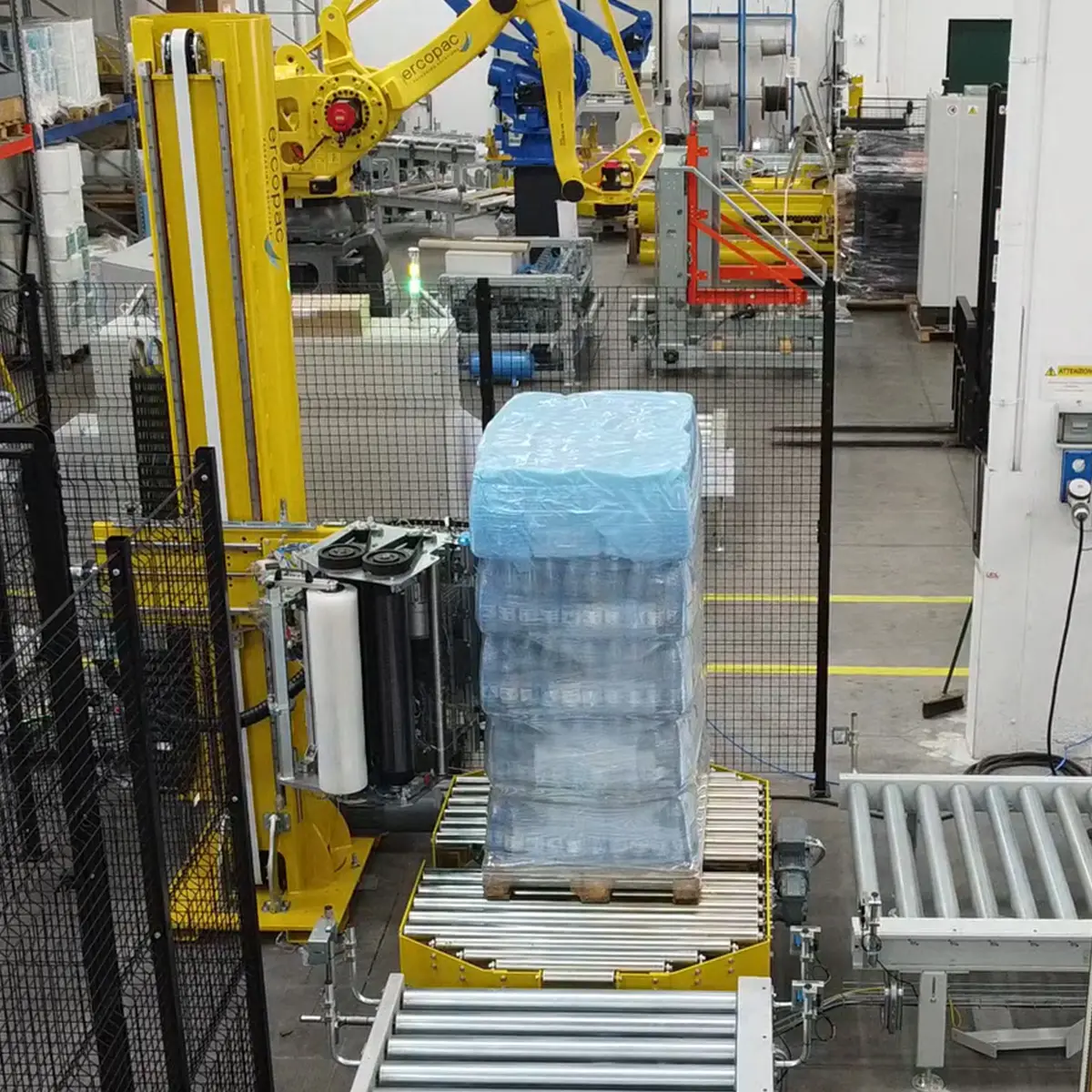

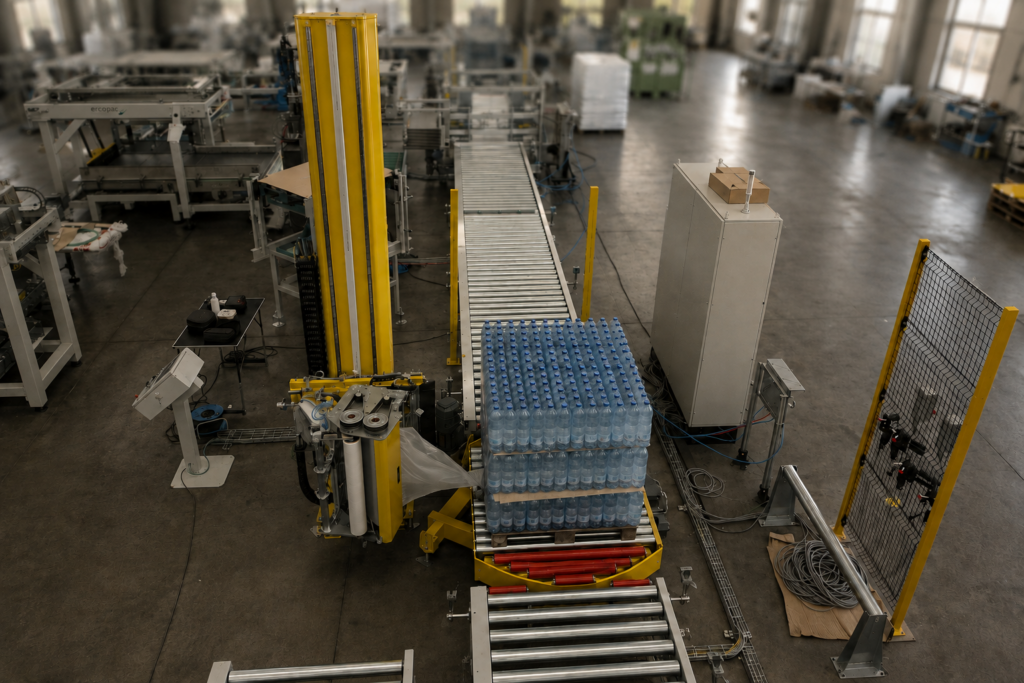

Column-type wrapping machine with Cartesian robot

Automatic pallet wrapping system with a Cartesian robot for low- and medium-speed lines.
Streamlined design without a press bar, load stability ensured by the 750 mm reel, low maintenance, and optimized footprint.

Stability

Thanks to the 750 mm reel, the SPIDER-S ensures perfect product stability even without a press bar. The bottom strap is standard on the range: securing the film to the pallet under all operating conditions.

Reduced Maintenance

Toothed belt drive that requires no periodic maintenance. All motors are located at the bottom of the machine for maximum accessibility without platforms or mezzanines.

Footprint

Compact structure designed to integrate into the end-of-line layout with minimal space requirements. Suitable for both new lines and existing facilities.

Modularity

Same construction logic and shared spare parts with SPIDER-C and SPIDER-R. Easy upgrades and low long-term operating costs.

Column-type wrapper for low and medium speeds

What does SPIDER-S do

01 It wraps automatically

SPIDER-S is the entry-level column-type wrapping machine in the Spider range: a press-free configuration designed for low- and medium-speed lines that require simple, reliable, and efficient automatic wrapping.

02 It ensures savings

The system is part of the same modular range as SPIDER-C and SPIDER-R: most spare parts are shared across all models, offering significant advantages in terms of operating costs and service speed.

03 It doesn't include a press

Unlike SPIDER-C, SPIDER-S does not include a press: it is the ideal solution for loads that are already sufficiently stable, where vertical control of the pallet top is not required during wrapping.

04 It offers an alternative

For higher production rates or loads requiring vertical stabilization, Ercopac offers SPIDER-C, up to SPIDER-R with an anthropomorphic robot for high-speed lines.

Types of Wrapping and Applications

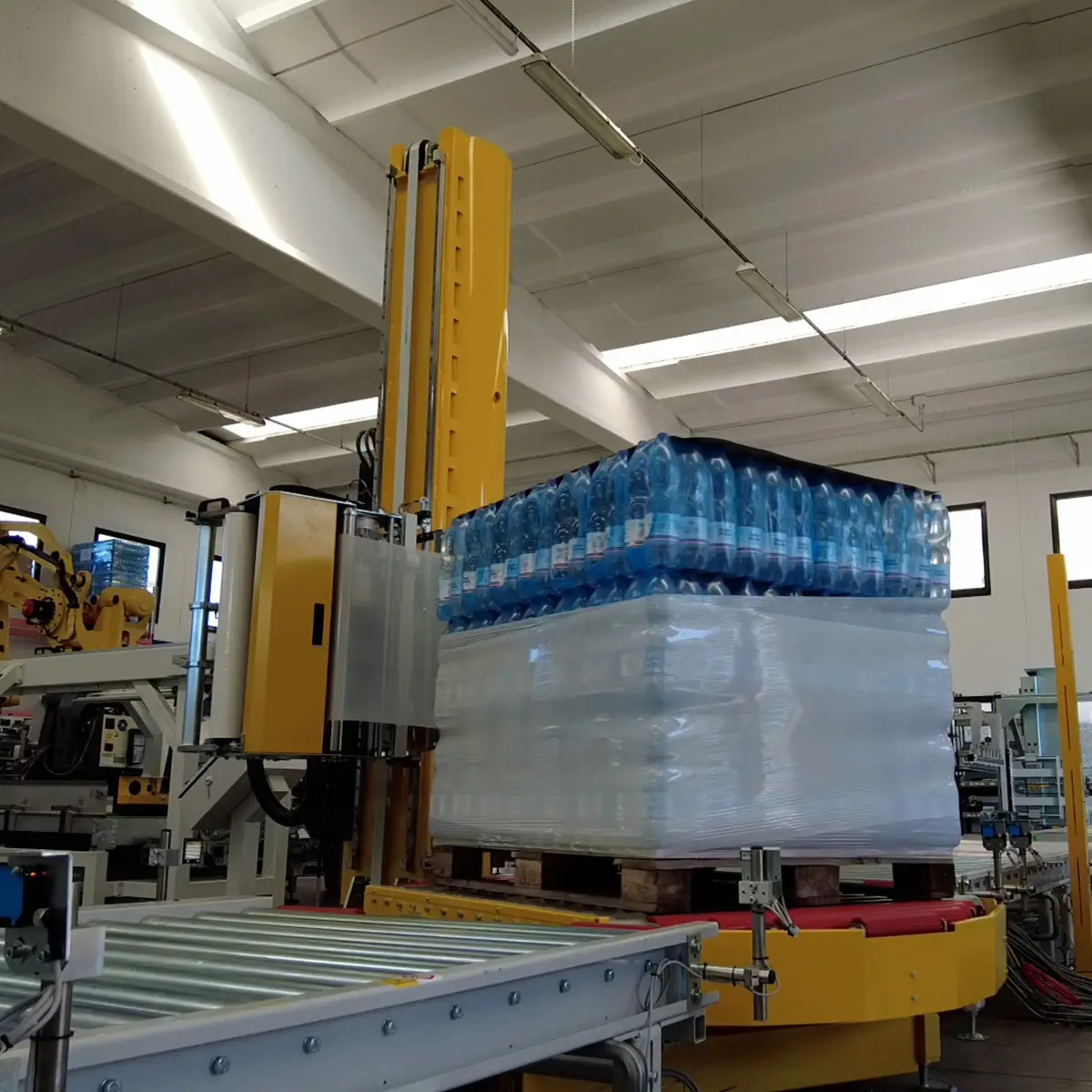

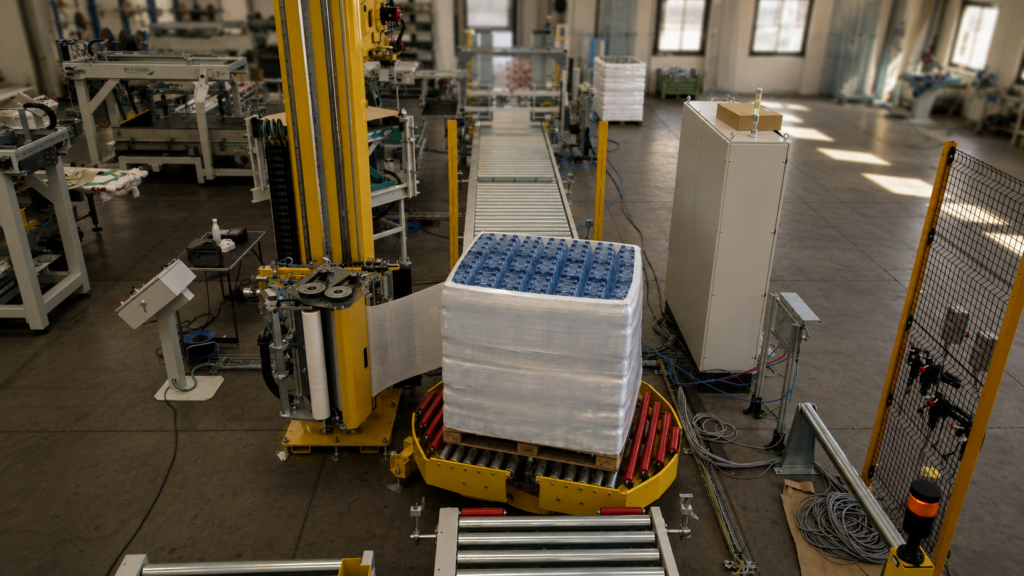

SPIDER-S handles the main wrapping modes: side wrapping and dust-proof wrapping. It is suitable for products with good inherent compactness, where standard wrapping ensures sufficient stability and protection.

The system is suitable for bottles, cartons, cans, boxes, and other products packaged in cartons, bundles, bags, trays, and other packaging compatible with the system configuration.

SPIDER-S achieves a production capacity of up to 60–80 pallets per hour, depending on the configuration. It is the flagship solution in the range for low- and medium-speed lines.

Load Stability and 750 mm Reel

The 750 mm reel is one of the distinctive features of the SPIDER range: it ensures optimized film distribution over the product, guaranteeing secure anchoring and load stability even without the presser bar. Compared to standard reels, it allows for a 10–20% reduction in side film usage, contributing to a lower environmental impact.

The bottom strap is standard across the entire Spider range: essential for securing the film to the pallet, it ensures product stability and wrapping quality under all operating conditions.

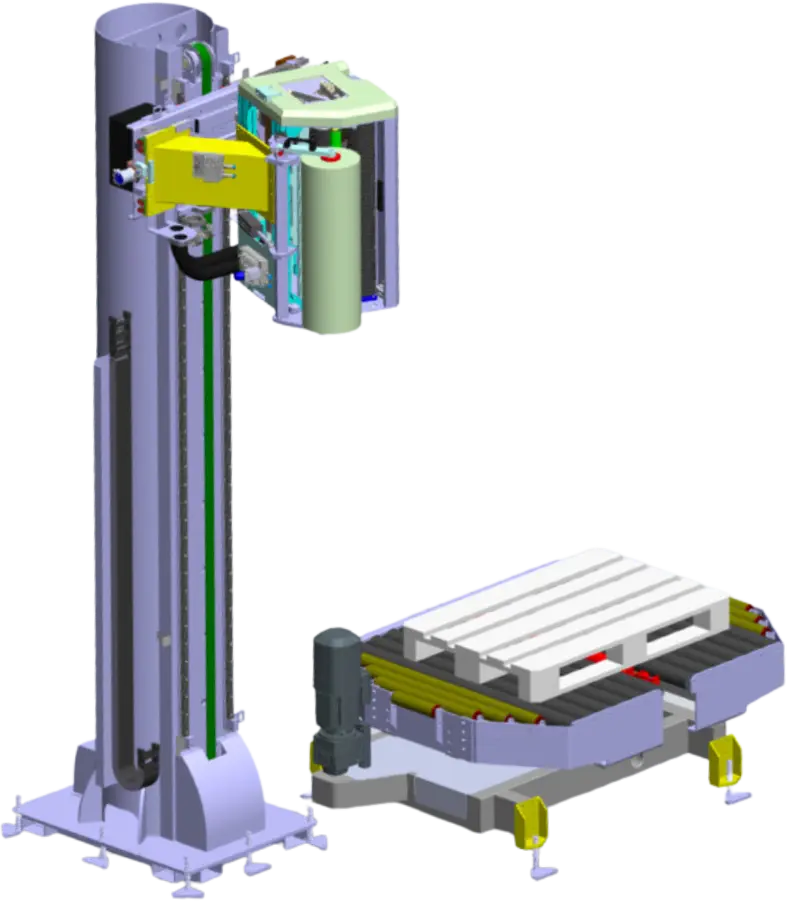

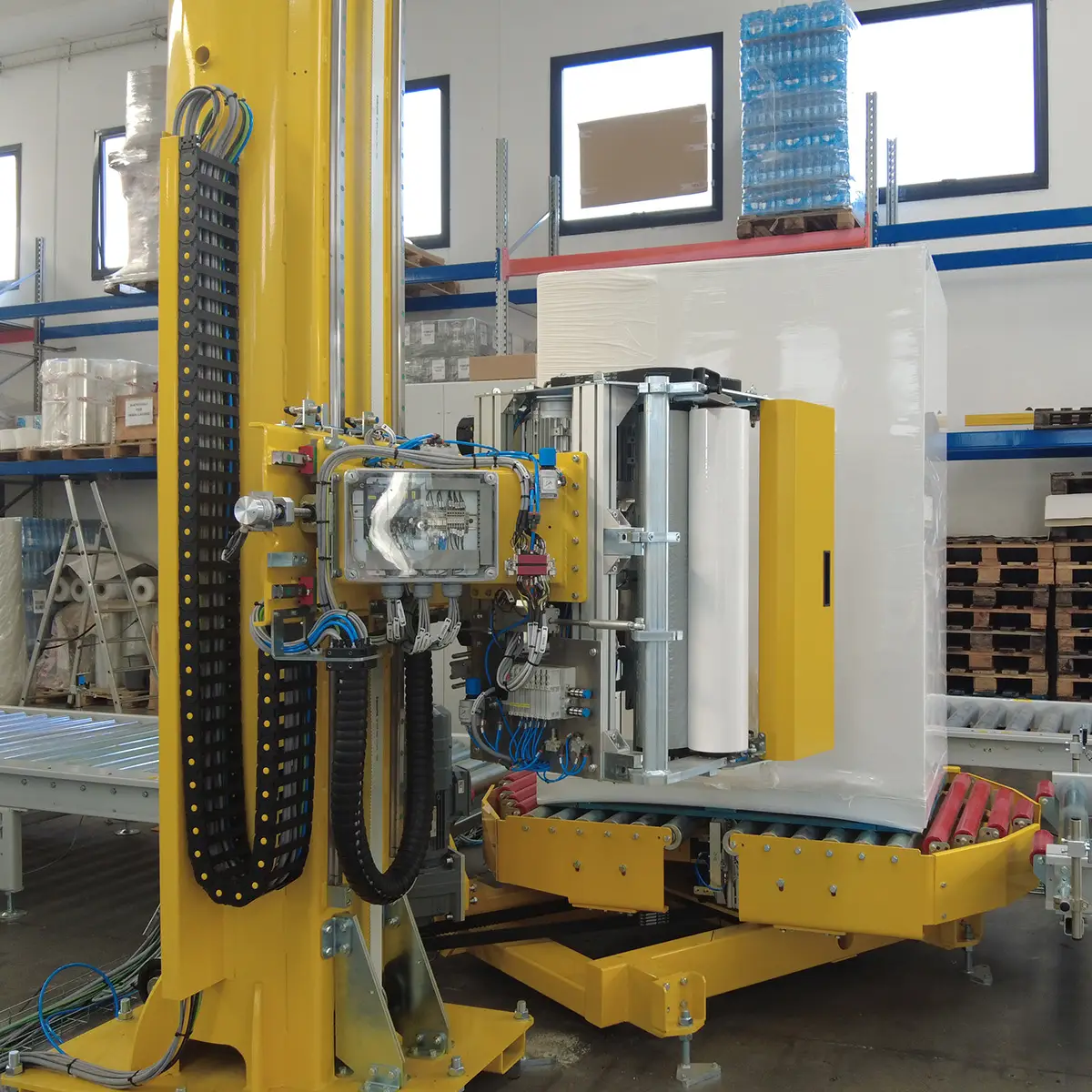

Wrapping Head and Drive System

The SPIDER-S winding head handles reels ranging from 500 to 750 mm in height and weighing 24 to 60 kg, ensuring a long operating cycle between changes. The housing with a transparent cover allows the condition of the belts to be checked without disassembly.

Power is transmitted via a high-strength toothed belt: no gearbox, no periodic maintenance, and a motor inside the head for an optimized footprint. The rotating table with toothed belt drive ensures fast diagonal movements, a compact layout, and constant production speed. All motors are located at the bottom of the machine: full accessibility for maintenance and cleaning without platforms or mezzanines.

Thanks to the 750 mm reel, SPIDER-S ensures perfect product stability even without the press bar.

When to choose the SPIDER-S column wrapper

When the load is already stable and does not require vertical control

Ideal for compact products and well-structured pallets, where the press bar is not necessary to maintain load stability during wrapping.

When you want to automate a manual bundling process

Perfect as a first step toward end-of-line automation: it replaces slow, non-standardized manual processes with a reliable and repeatable solution.

When operating on low- or medium-speed lines

Suitable for applications where high performance isn’t required: up to 60–80 pallets per hour, with consistent bundling quality and low operating costs.

When you’re looking for a simple, reliable, and cost-effective solution

It offers an excellent balance between investment and functionality: fewer components, less maintenance, and spare parts shared across the entire Spider range.

When you have limited space or compact layouts

Thanks to its streamlined design, it integrates easily into existing facilities, with a small footprint and easy access for operators and maintenance personnel.

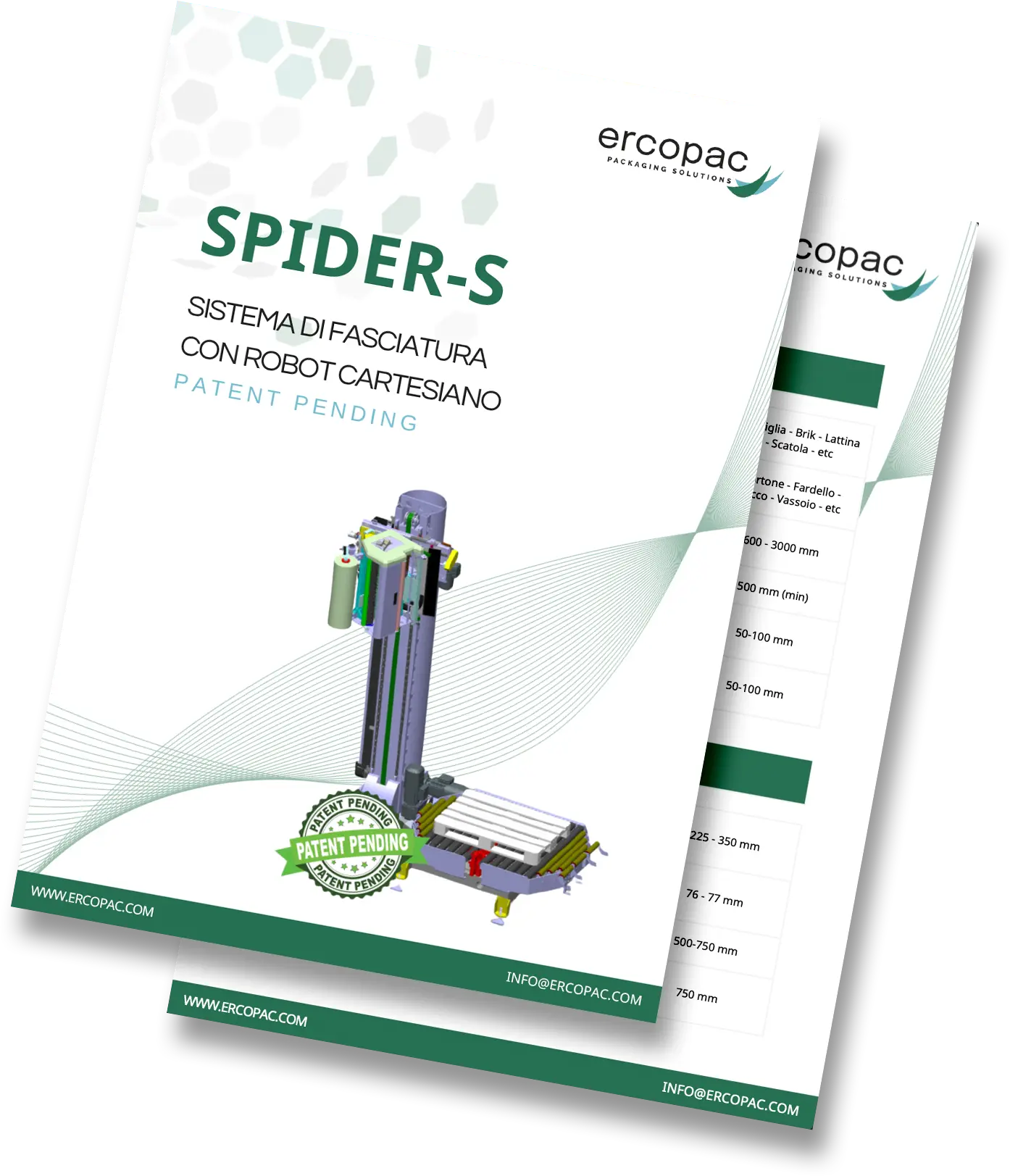

Request the SPIDER-S technical data sheet

Fill out the form to receive the technical specifications for the SPIDER-S column-type wrapper and evaluate the configuration best suited for your end-of-line needs.

EXTRA

EDGE PROTECTION INSERTER

Single/double edge gripper

Single edge stacker or automatic edge changeover

PERFORATION SYSTEM

Film perforation system designed to prevent condensation from forming inside the pallet.

The system allows automated perforation on all four sides of the pallet, adapting precisely to the specifications of each format.
