Column-type wrapping machine with Cartesian robot and top presser

Automatic pallet wrapping system with cartesian robot and press: high-quality wrapping, compact layout, and modular configuration for end-of-line applications.

Up to 130 pallets per hour on half-pallets with automatic head change in 55 seconds.

Reliability

SPIDER-C replicates the same movements as the robotic systems in the range, ensuring process consistency and uniform wrapping quality across all Spider models.

High Performance

Production capacity of up to 130 pallets/hour on half-pallets and 110 pallets/hour on Euro-pallets in the High Speed configuration. Automatic head change in 55 seconds.

Flexibility

Modular configuration with dedicated options: automatic head change, corner applicators, film perforation system, top cover, and more.

Accessibility

All motors are located at the bottom of the machine. No motors in the upper section: maintenance without platforms or mezzanines.

Column-type wrapper with cartesian robot for compact end-of-line applications

What does SPIDER-C do

01 It wraps automatically

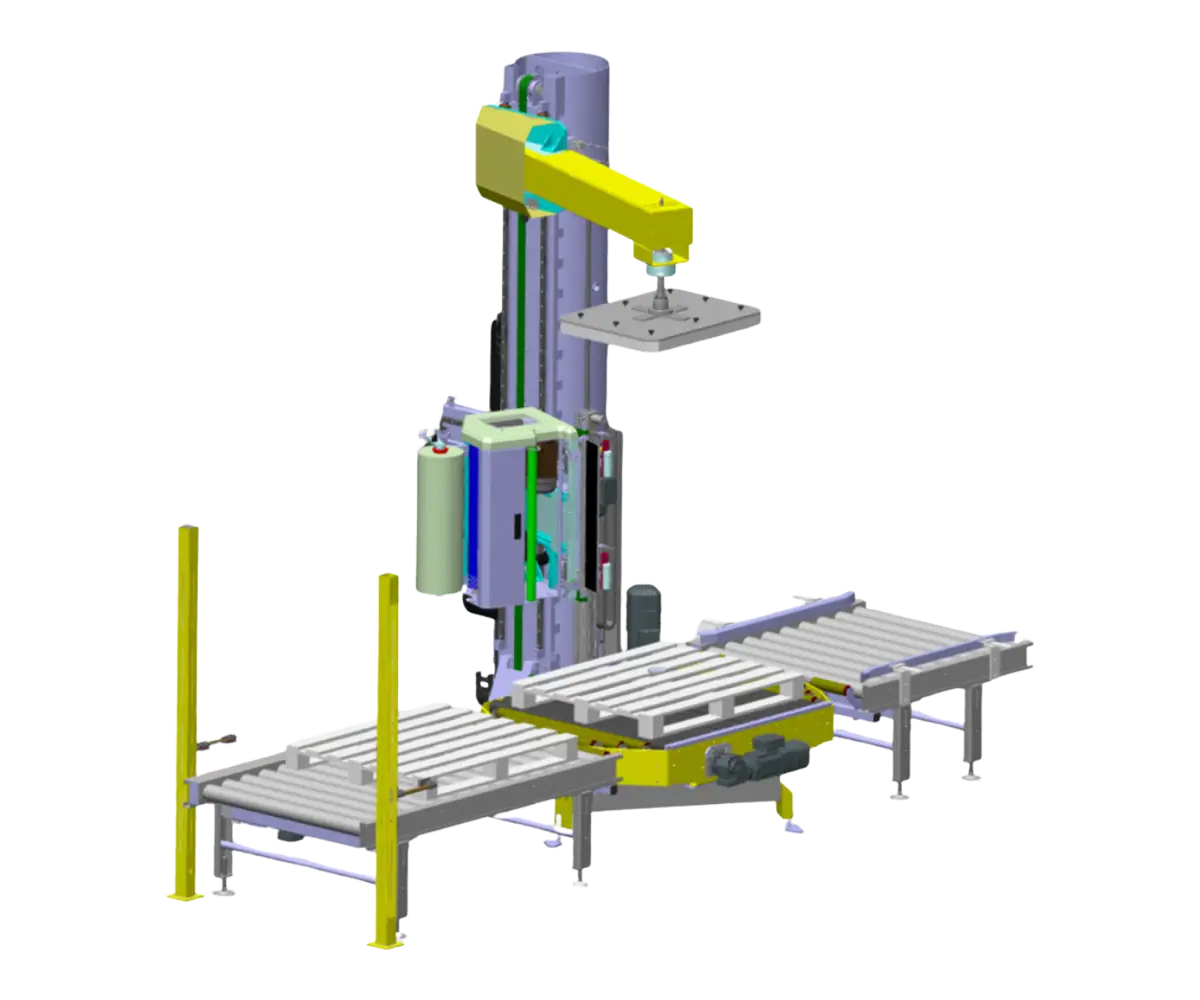

SPIDER-C is Ercopac’s column-type wrapper with a cartesian robot and press, designed for automatic pallet wrapping in the beverage, food, tissue, dairy, and other industries.

02 It ensures continuity

The machine combines wrapping quality, compact footprint, and operational continuity, adapting to half-pallets, Euro-pallets, and industrial pallets.

03 It stabilizes the load

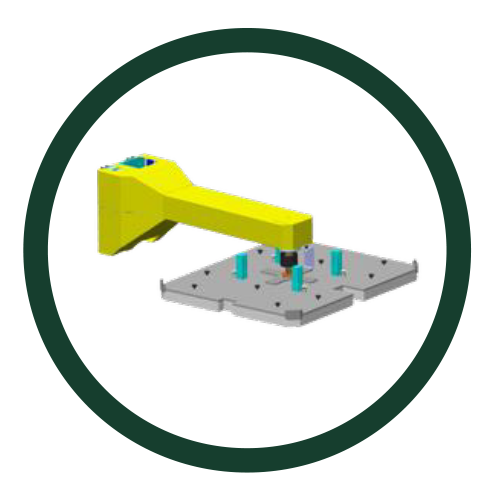

Unlike the SPIDER-S, the SPIDER-C is equipped with a free-running or motorized press that stabilizes the load during the wrapping cycle, allowing it to handle even less stable pallets or more delicate products while maintaining high wrapping quality.

04 It allows savings

The modular design of the SPIDER range ensures that major components and spare parts are shared across models, facilitating upgrades and keeping operating costs low over time.

Types of Wrapping and Applications

SPIDER-C supports the main wrapping modes: side, dust-proof, and water-proof. The patented water-proof cycle provides complete pallet protection in a single wrapping cycle, thanks to the application of air blasts and counter-blasts that keep the top film raised during wrapping.

The system is suitable for bottles, cartons, cans, boxes, and other products packaged in cartons, bundles, bags, trays, and other compatible packaging.

Performance and Production Configurations

SPIDER-C is available in three configurations with increasing performance:

SPIDER C-F

Column-type wrapper
with idler top presser

Europallet: 90 pal/h

Half pallet: 100 pal/h

SPIDER C-M

Column-type wrapper
with motorized top press

Europallet: 100 pal/h

Half pallet: 120 pal/h

SPIDER C-HS

Column-type wrapper
High Speed

Europallet: 110 pal/h

Half pallet: 130 pal/h

Performance varies depending on the type of pallet and the number of wrapping revolutions. Synchronization between the press and the turntable is ensured under all conditions thanks to the belt drive with an integrated mechanical shaft.

Wrapping quality and operational continuity

One of the distinctive features of the range is the ability to replicate the same movements between column-type and robotic systems. Thanks to the addition of the fifth axis in the wrapping head (patented), SPIDER-C and SPIDER-S are able to replicate the wrapping logic of SPIDER-R, ensuring consistent characteristics in terms of load stability and finished product quality.

The position of the wrapping head (patented) ensures maximum precision in cutting and sealing operations thanks to the reduced distance between the head and the product during the cycle, with faster diagonal movements and automatic film positioning at the corners of the pallet.

Wrapping quality is ensured by several active patents, including the reduced distance between the wrapping head and the product during the cycle.

Automatic head change and operational continuity

The automatic head change on the SPIDER-C (patented) takes 55 seconds, using a rotating unit consisting of two parking positions that rotate 180°. The system’s safety is very high: the head cannot fall from its mounting during the change, even in the event of software or operator errors.

The interchangeable wrapping heads allow for film restoration operations in the event of a break or roll replacement without production downtime and in complete safety.

Wrapping Film Specifications

The SPIDER-C column-style wrapper operates with films ranging from 11 to 45 μ and offers a pre-stretch capacity of up to 500%. The 750 mm roll is the recommended configuration, offering 10–20% film savings and compatibility with recyclable film. The system also accommodates 500 mm and 1000 mm rolls.

OPTIONS

Available options

SPIDER-C can be configured with:

Automatic head change in 55 seconds (patented)
Automatic corner applicator
WASP film perforation system (patented)
Top cover (patented)
Incoming pallet centering
Incoming half-pallet splitting
Outgoing half-pallet joining
Top strap
External sealer
Automatic incoming pallet height reading

When to choose the SPIDER-C column wrapper

When you need vertical stabilization during wrapping

The presser (manual or motorized) keeps the load compact during rotation, preventing unwanted movement and improving wrap quality even with delicate or irregular products.

When you want to improve wrapping quality without increasing film consumption

Thanks to mechanical load control and cycle precision, you can achieve greater stability with less material compared to less advanced solutions.

When you’re looking for a balanced solution between simplicity and performance

SPIDER-C offers an excellent balance between investment, reliability, and performance.

When working with medium-to-high productivity lines

Suitable for environments requiring operational continuity and consistent quality, without necessarily reaching the maximum speeds of robotic systems. Up to 130 pallets/hour with SPIDER C-HS.

When you need to handle multiple product types on the same line

Thanks to its configurability and recipe management, it easily adapts to different needs without complex machine adjustments.

Request the SPIDER-C technical data sheet

Fill out the form to receive the technical specifications for the SPIDER-C column-type wrapper and evaluate the configuration best suited for your end-of-line needs.

EXTRA

EDGE PROTECTION INSERTER

Single/double edge gripper

Single edge stacker or automatic edge changeover

PERFORATION SYSTEM

Film perforation system designed to prevent condensation from forming inside the pallet.

The system allows automated perforation on all four sides of the pallet, adapting precisely to the specifications of each format.

Spider-S

Wrapping system with Cartesian robot

Our range of column stretch wrappers stands out for the quality of the wrapping, high performance, and compact layout.

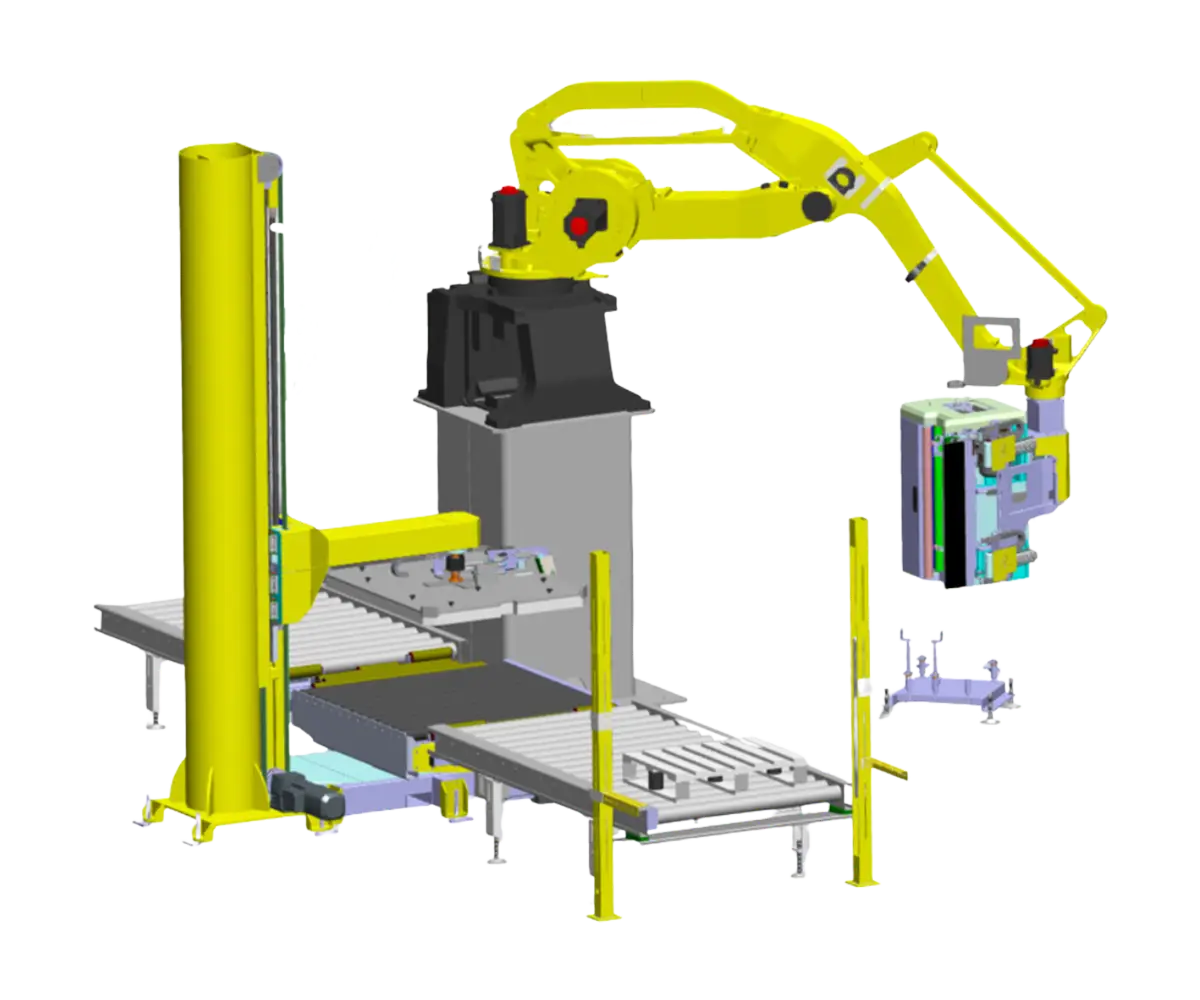

Spider-R

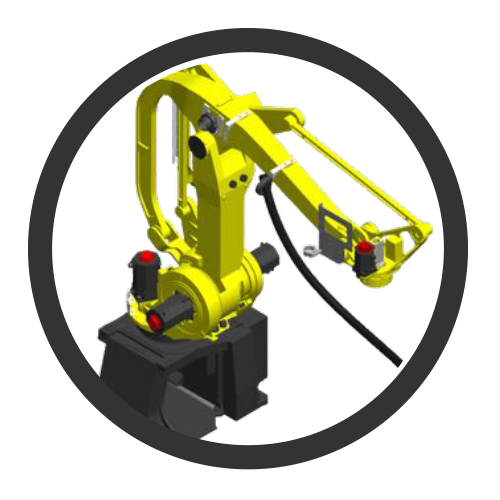

Wrapping system with ANTROPOMORPH robot.
