ROBOTIC LAYER PALLETIZER FOR HIGH-SPEED LINES

Robotic layer palletizing system for high-speed lines: picks up, compacts, and places the layer on the pallet with precision.

Two standard configurations with motorized grippers for Beverage (up to 250 kg) and Tissue (up to 70 kg), up to 9–10 layers/min.

Precision

Motorized gripper with controlled opening/closing and gripping sides for squaring: the layer is already perfectly formed before placement on the pallet.

High performance

Up to 9–10 layers/min depending on the product type. Management of multiple input lines.

Configuration Flexibility

Adaptable to the available layout, pallet type, and required line equipment. Custom grippers available for specific applications.

Operational Reliability

Robot MTBF up to 80,000 hours. Intuitive operation via a dedicated HMI.

Robotic layer palletizing

What does DRAGONFLY do

01 Layer forming

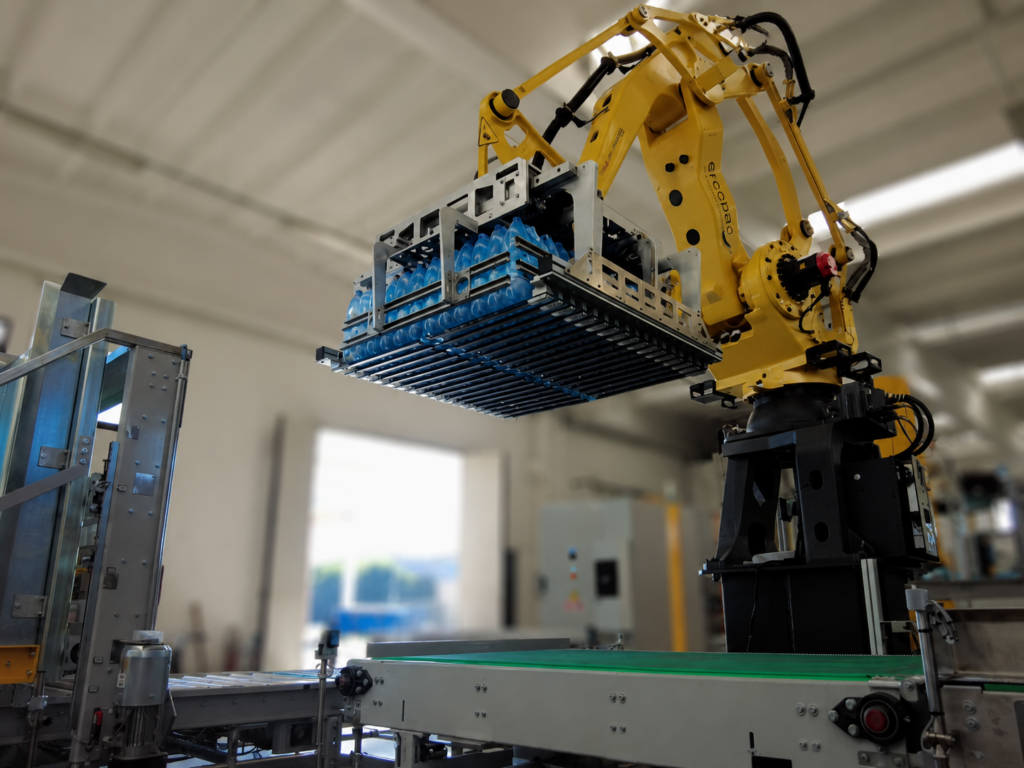

DRAGONFLY is the Ercopac automatic palletizer designed for the automatic formation of complete pallets by handling entire layers of product.

02 Ensuring stability

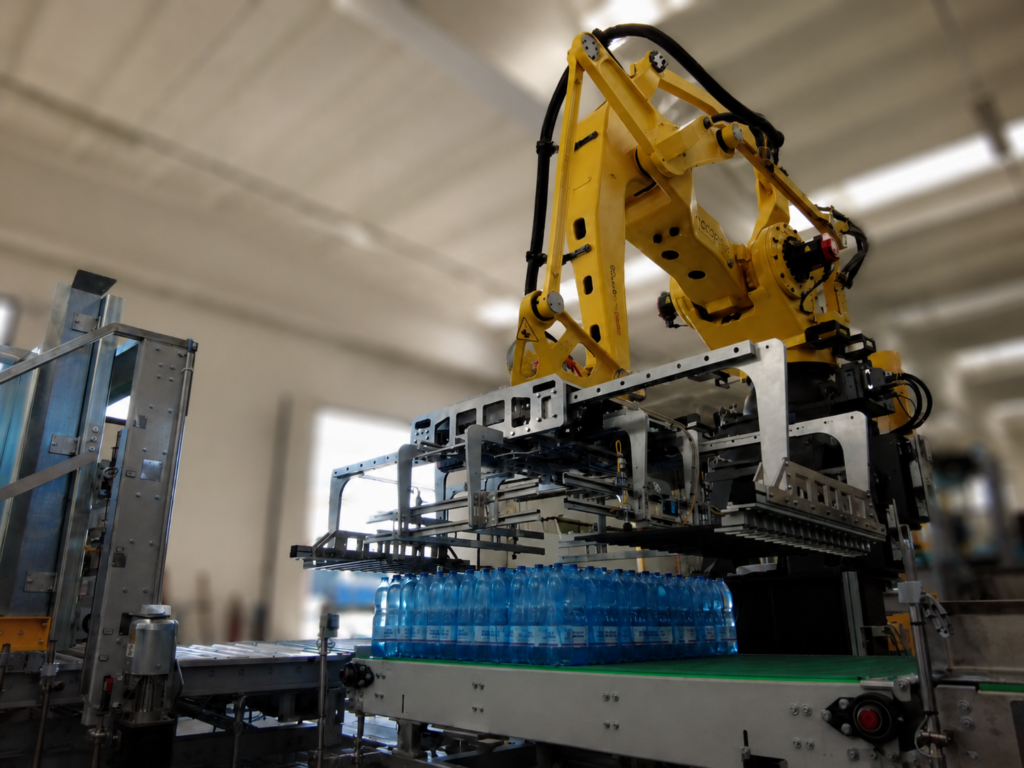

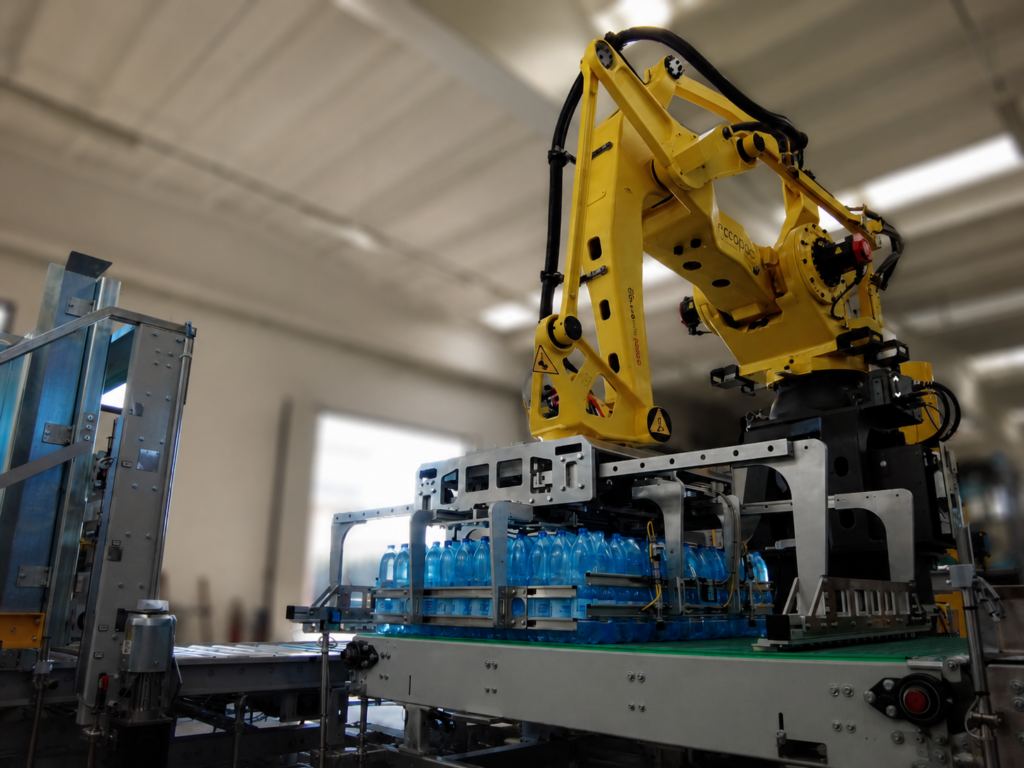

The system picks up the layer from the line, compacts it with precision, and places it on the pallet, ensuring high load stability, layer uniformity, and maximum production speed.

03 Precise placing

Unlike single-grip systems such as LYNX, DRAGONFLY handles compact loads in a single operation: the challenge is not gripping the individual product, but precisely controlling the entire layer until it is set down.

04 Increasing productivity

This is why DRAGONFLY is the natural choice for high-throughput lines where speed and pallet stability must go hand in hand.

The motorized gripper: layer control from pickup to placement

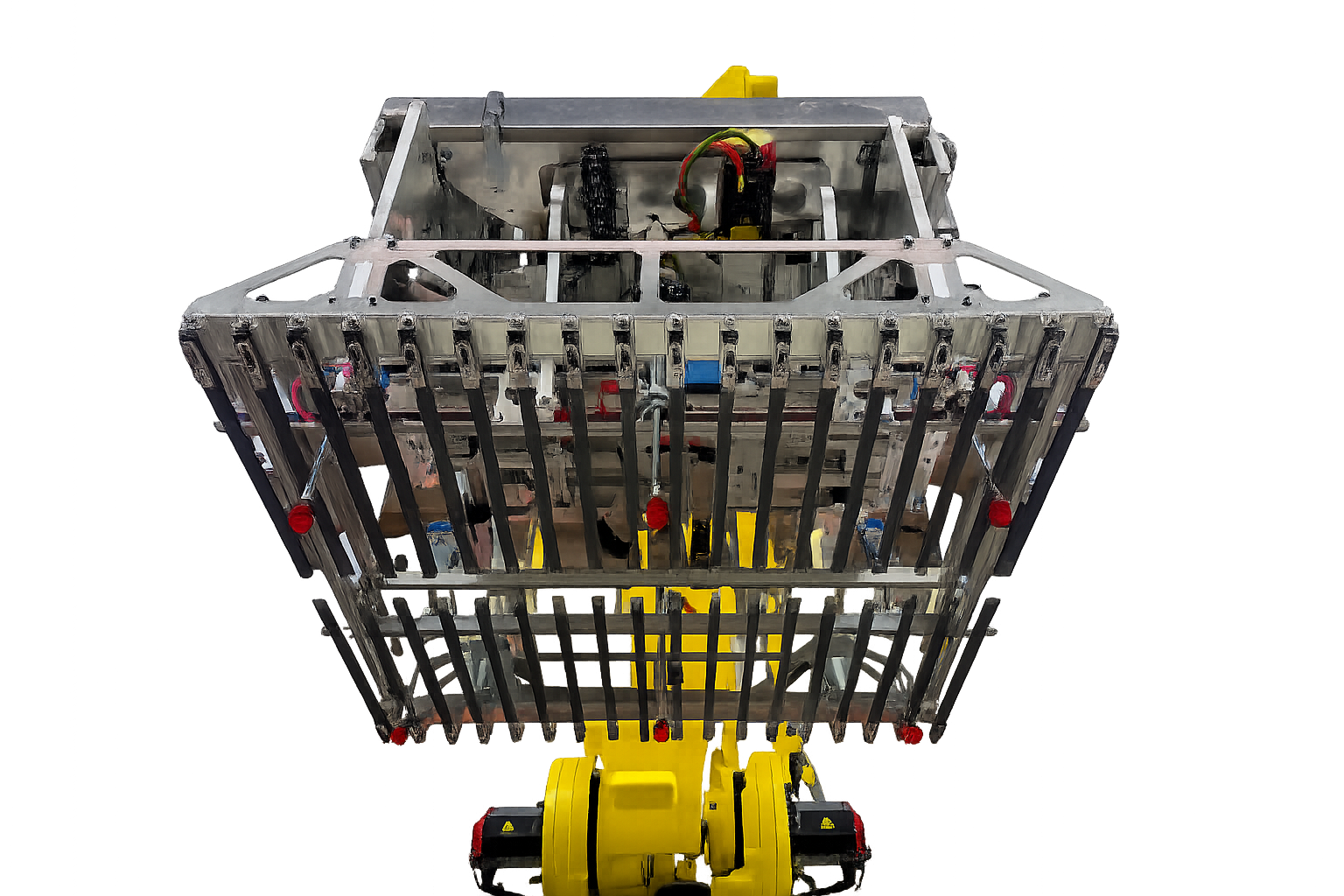

At the heart of DRAGONFLY is the high-precision motorized gripper, designed to maintain the layer’s squareness, alignment, and compactness throughout the entire handling process. The gripper integrates three dedicated motors:

Opening and closing of the fork gripper, controlled as an additional axis by the robot controller
Two side walls for squaring and containing the product, managed as additional axes

This architecture overcomes the limitations of traditional layer palletizing: deformation of gripping elements under high loads, loss of layer geometry during transfer, and difficulties with unstable products. With DRAGONFLY, the layer is already perfectly formed before it even touches the pallet.

The motorized gripper with side containment ensures precision and uniformity prior to placement, reducing manual intervention and increasing overall speed.

Available grippers:

Beverage, Tissue, and custom configurations

Beverage Gripper

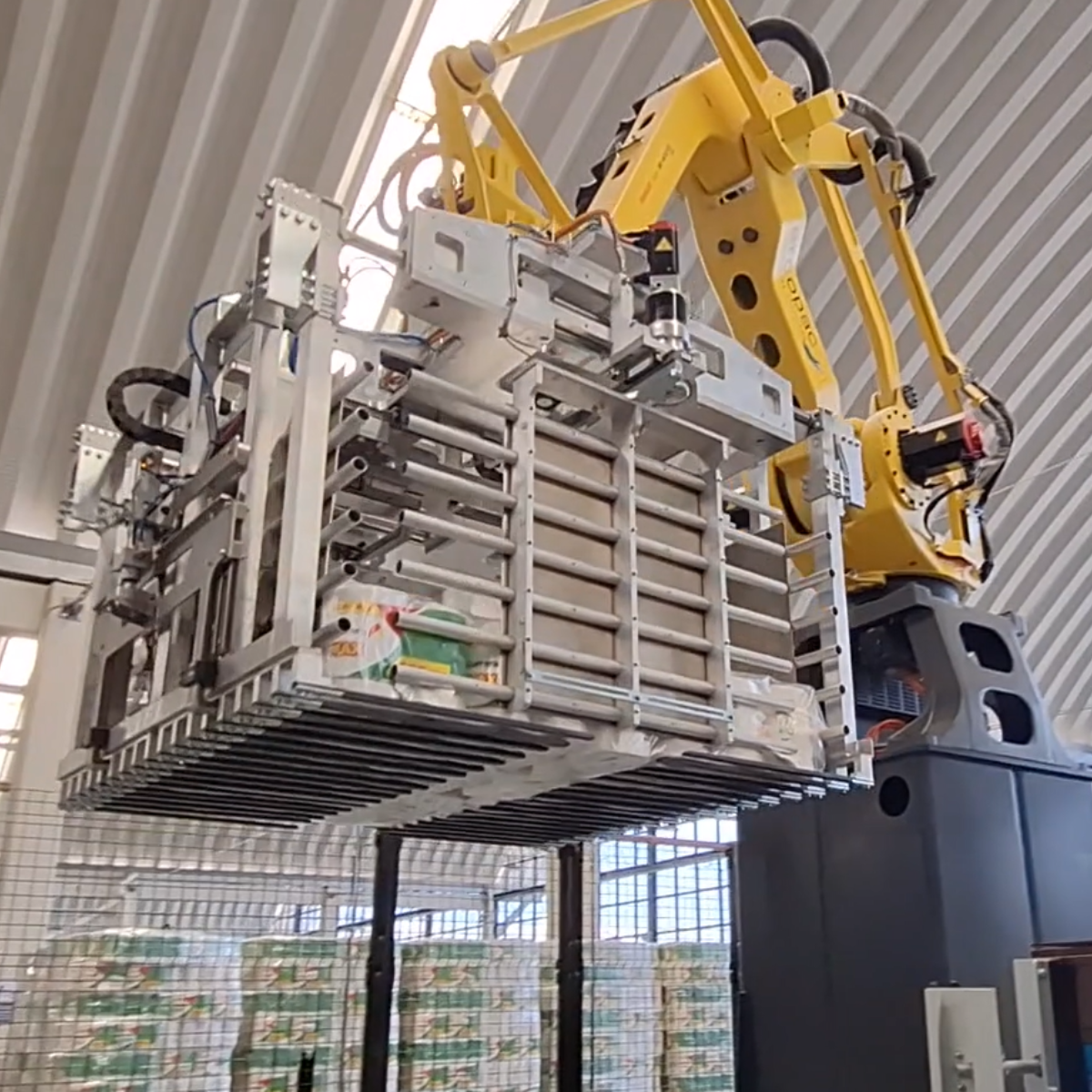

Maximum load 250 kg. Designed for bundles, cartons, and heavy products in the beverage industry. High-strength carbon fiber grippers ensure long-term reliability.

Tissue Gripper

Maximum load 70 kg. Optimized for light and bulky products in the tissue industry, with gentle and precise handling.

Tubes Gripper

For palletizing empty glass bottles. Ensures stable and precise handling using an elastic belt.

Bells Gripper

For palletizing large bottles. It achieves a throughput of up to 4,800 bottles per hour with high precision.

Handleable pallet types, products, and packaging

DRAGONFLY is compatible with the main types of pallets:

Half pallet 600×800×150 mm
Euro pallet 800×1200×150 mm
Industrial pallet 1000×1200×150 mm
CHEP – GMA 40″×48″×4,75″

The system handles cartons, bundles, bags, trays, and other types of packaging, including products such as bottles, cartons, cans, boxes, and other formats compatible with the system configuration.

OPTIONS

Available options

DRAGONFLY can be configured with:

Interlayer stacker
Pallet feeding stacker
Bottom sheet on pallet
Top sheet on pallet

When to choose DRAGONFLY

When you have high-throughput lines

DRAGONFLY is ideal for handling large volumes thanks to its layer-by-layer handling: up to 10 layers per minute, with multiple input lines manageable simultaneously.

When the product requires high structural stability

Perfect for compact loads where maintaining the layer’s squareness and integrity is essential throughout the entire handling process, from picking to palletizing.

When you want to maximize efficiency and speed

Layer handling drastically reduces cycle times compared to single-product handling: more product moved per cycle, higher overall productivity, and less time to build each pallet.

When you need compaction and layer control

The motorized gripper with side containment ensures precision and uniformity before placement: the layer is already formed and controlled, eliminating the need for corrective actions downstream.

Request the DRAGONFLY technical data sheet

Fill out the form to receive the technical specifications for the DRAGONFLY automatic palletizer and evaluate the configuration best suited to your production line.

EXTRA

MULTIFUNCTIONAL JOLLY GRIPPER

The multifunction Jolly gripper (patent pending) is available for lines with stacked pallets: with a single motion, it positions the sheet, picks up the empty pallet, and prepares the stacked pallet, reducing the line’s footprint and increasing cycle efficiency.

INTERLAYER PLACING ROBOT

Production capacity of up to 300 interlayers per hour.
It can handle different types of interlayers or frames simultaneously and operate on two lines at the same time.
